45° angle C-profile connector, T:5mm ( Hot Dip Galvanized )

Code:

ACB-25 HDG

Unit: Piece

Basic features

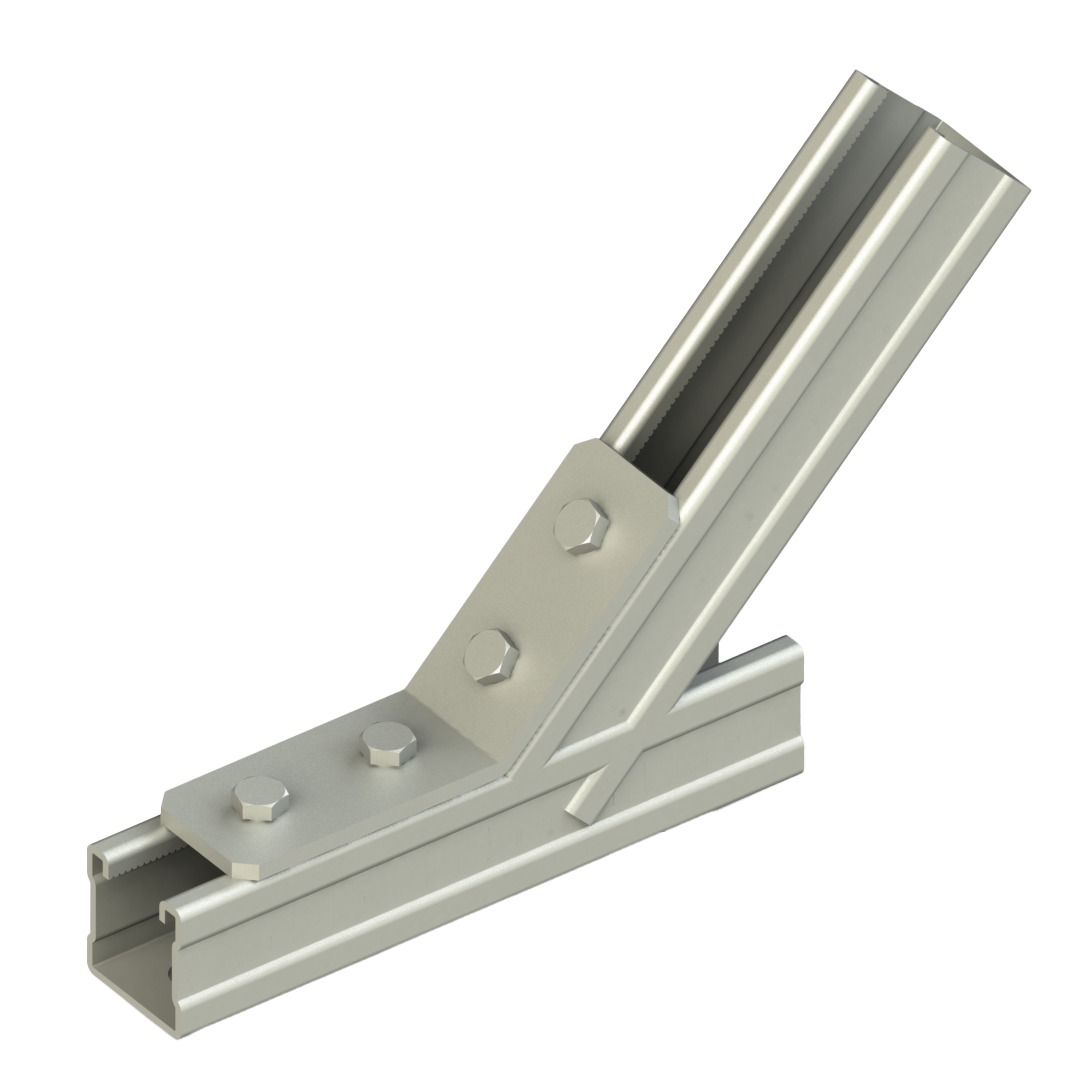

Designed for connecting C-profiles (strut channels) at a 45° angle and installing inclined struts (braces) within suspension systems and supporting metal structures. Provides additional rigidity and spatial stability of mounting assemblies. Hot-dip galvanized (Hot Dip Galvanized) protective coating ensures high corrosion resistance when operated in high humidity and aggressive environments.

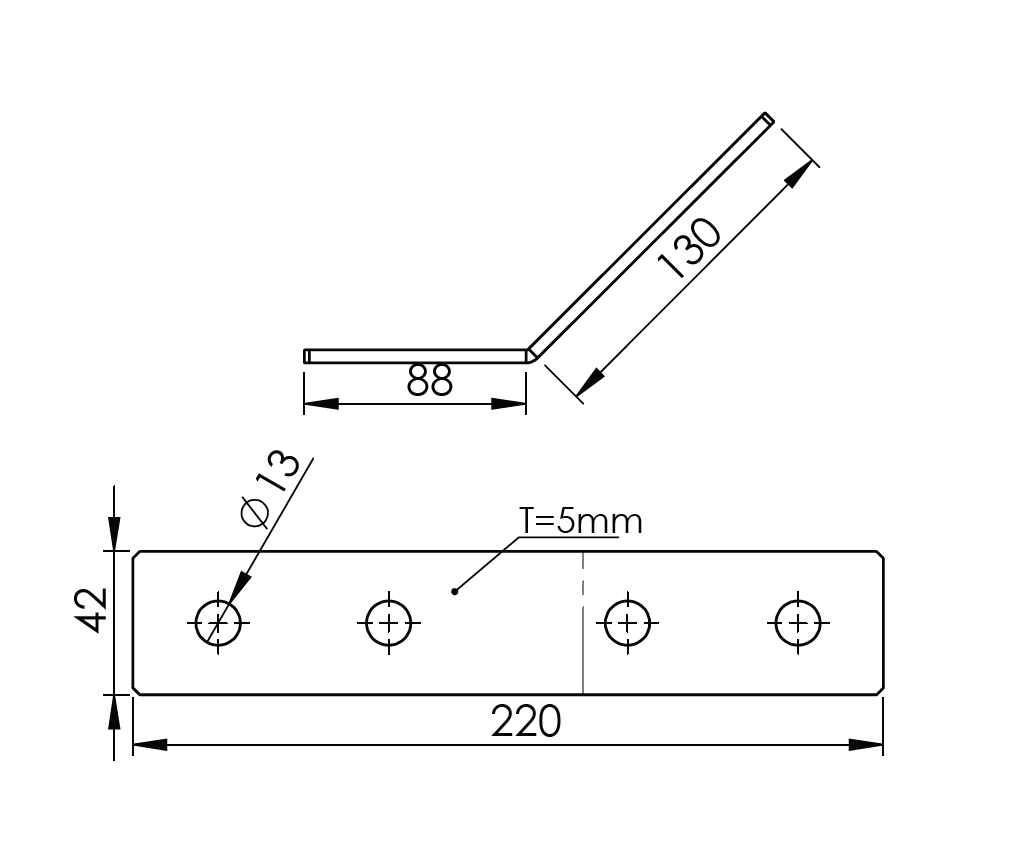

Specifications:

Steel thickness: 5.0 mm

Overall length: 220 mm (flange lengths: 88 mm and 130 mm)

Width: 42 mm

Hole diameter: 13 mm

Protective coating: Hot-dip galvanizing (HDG)

Weight: 0.400 kg / pc.

Download Now
