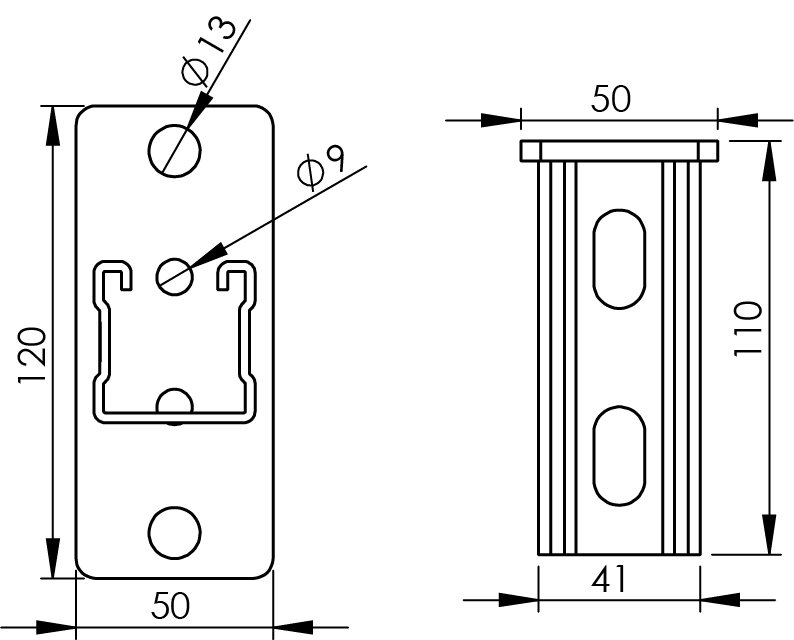

    C Support Bracket, 41х41mm, L:100mm, T:1,5mm ( Hot Dip Galvanized )

    C Support Bracket, 41х41mm, L:100mm, T:1,5mm ( Hot Dip Galvanized )
    C Support Bracket, 41х41mm, L:100mm, T:1,5mm ( Hot Dip Galvanized )
    C Support Bracket, 41х41mm, L:100mm, T:1,5mm ( Hot Dip Galvanized )
    C Support Bracket, 41х41mm, L:100mm, T:1,5mm ( Hot Dip Galvanized )
    Code:
    ACK-41-41-10 HDG
    Unit: Piece
    Basic features
    Width
    Height
    Coating

    Bracket ACK-41-41 is designed for the installation of cable tray runs, suspension elements, and structures. Can be mounted to walls/ceilings, installed in profiles: AC-21, AC-41, or mounted on single and double hangers. Designed for trays with a width of 100 mm. Has a zinc coating and is corrosion-resistant.

    Datasheet

    Specifications:

    Steel thickness: 1,5 mm
    Color: Light gray
    Width, mm: 50
    Model/execution: Wall bracket
    Height, mm: 85
    Protective surface coating: Hot Dip Galvanized
    Length, mm: 110
    Material: Steel
