    C Support Bracket, 41х41mm, L:400mm, T:2mm ( Hot Dip Galvanized )

    C Support Bracket, 41х41mm, L:400mm, T:2mm ( Hot Dip Galvanized )
    C Support Bracket, 41х41mm, L:400mm, T:2mm ( Hot Dip Galvanized )
    C Support Bracket, 41х41mm, L:400mm, T:2mm ( Hot Dip Galvanized )
    C Support Bracket, 41х41mm, L:400mm, T:2mm ( Hot Dip Galvanized )
    Code:
    ACK-41-41-40 HDG
    Unit: Piece
    Basic features
    Width
    Height
    Coating

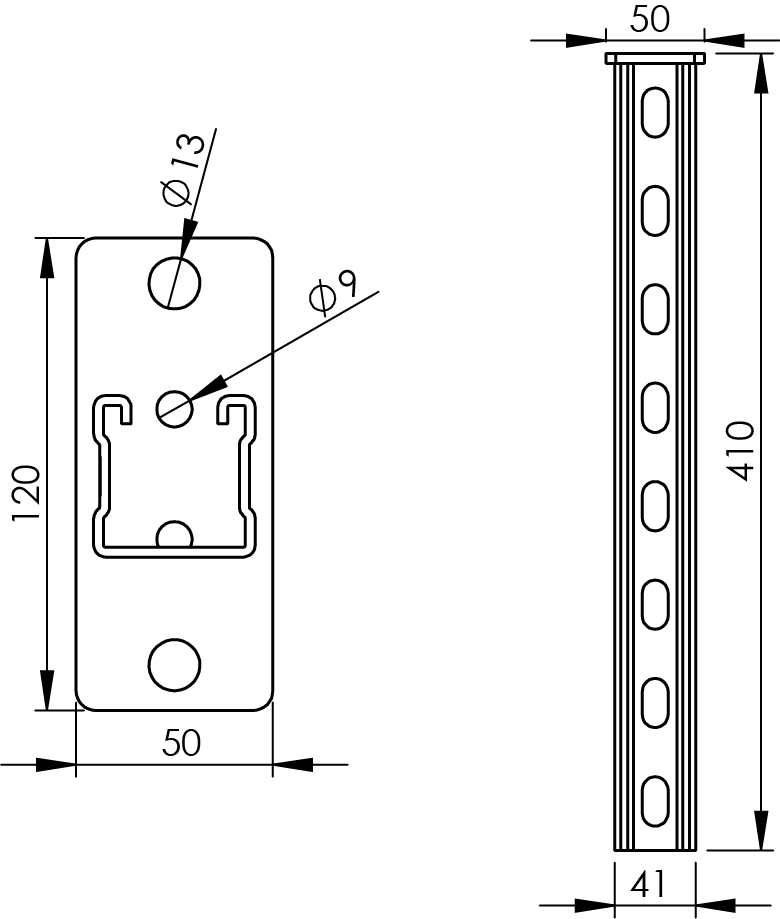

    Bracket ACK-41-41 is designed for the installation of cable tray runs, suspension elements, and structures. Can be mounted to walls/ceilings, installed in profiles: AC-21, AC-41, or mounted on single and double hangers. Designed for trays with a width of 400 mm. Has a zinc coating and is corrosion-resistant.

    Datasheet

    Specifications:

    Steel thickness: 2 mm
    Color: Light gray
    Width, mm: 50
    Model/execution: Wall bracket
    Height, mm: 85
    Protective surface coating: Hot Dip Galvanized
    Length, mm: 410
    Material: Steel

    Download Now
    ACK-41-41-90 HDG
    ACK-41-41-90 HDG
    C Support Bracket, 41х41mm, L:900mm, T:2mm ( Hot Dip Galvanized )
    Unit: Piece
    ACK-41-41-80 HDG
    ACK-41-41-80 HDG
    C Support Bracket, 41х41mm, L:800mm, T:2mm ( Hot Dip Galvanized )
    Unit: Piece
    ACB-904 HDG
    ACB-904 HDG
    3-axis corner connector for strut 90°, T:5mm ( Hot Dip Galvanized )
    Unit: Piece
    ACKD-41-41-40 HDG
    ACKD-41-41-40 HDG
    Double Bracket, 41х41mm, L:400mm, T:2mm ( Hot Dip Galvanized )
    Unit: Piece
    ACKD-41-41-80 HDG
    ACKD-41-41-80 HDG
    Double Bracket, 41х41mm, L:800mm, T:2mm ( Hot Dip Galvanized )
    Unit: Piece
    901H-4A-50 PG
    901H-4A-50 PG
    Horizontal Bend ( Adjustable )W: 500 mm · H: 40 mm · T: 1,0 mm · Pre Galvanized
    Unit: Piece
