C Support Bracket, 41х41mm, L:900mm, T:2mm ( Electro Galvanized )

Name: C Support Bracket, 41х41mm, L:900mm, T:2mm ( Electro Galvanized )
SKU: ACK-41-41-90 EG

Code:

ACK-41-41-90 EG

Unit: Piece

Basic features

Width

Height

Coating

Bracket ACK-41-41 is designed for the installation of cable tray runs, suspension elements, and structures. Can be mounted to walls/ceilings, installed in profiles: AC-21, AC-41, or mounted on single and double hangers. Designed for trays with a width of 900 mm. Has a zinc coating and is corrosion-resistant.

Datasheet

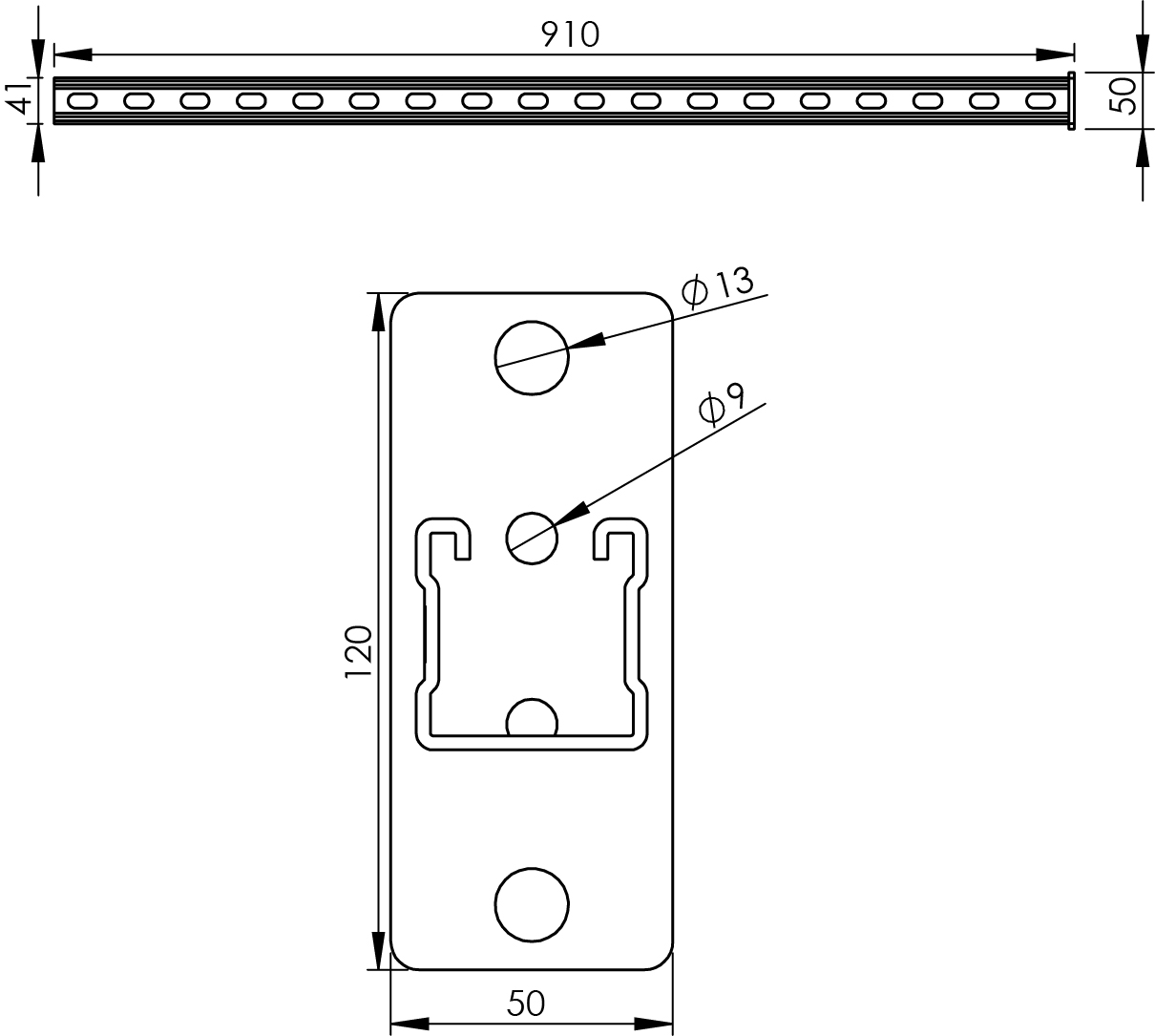

Specifications:

Steel thickness: 2 mm
Color: Light gray
Width, mm: 50
Model/execution: Wall bracket
Height, mm: 85
Protective surface coating: Electro-galvanized
Length, mm: 910
Material: Steel
