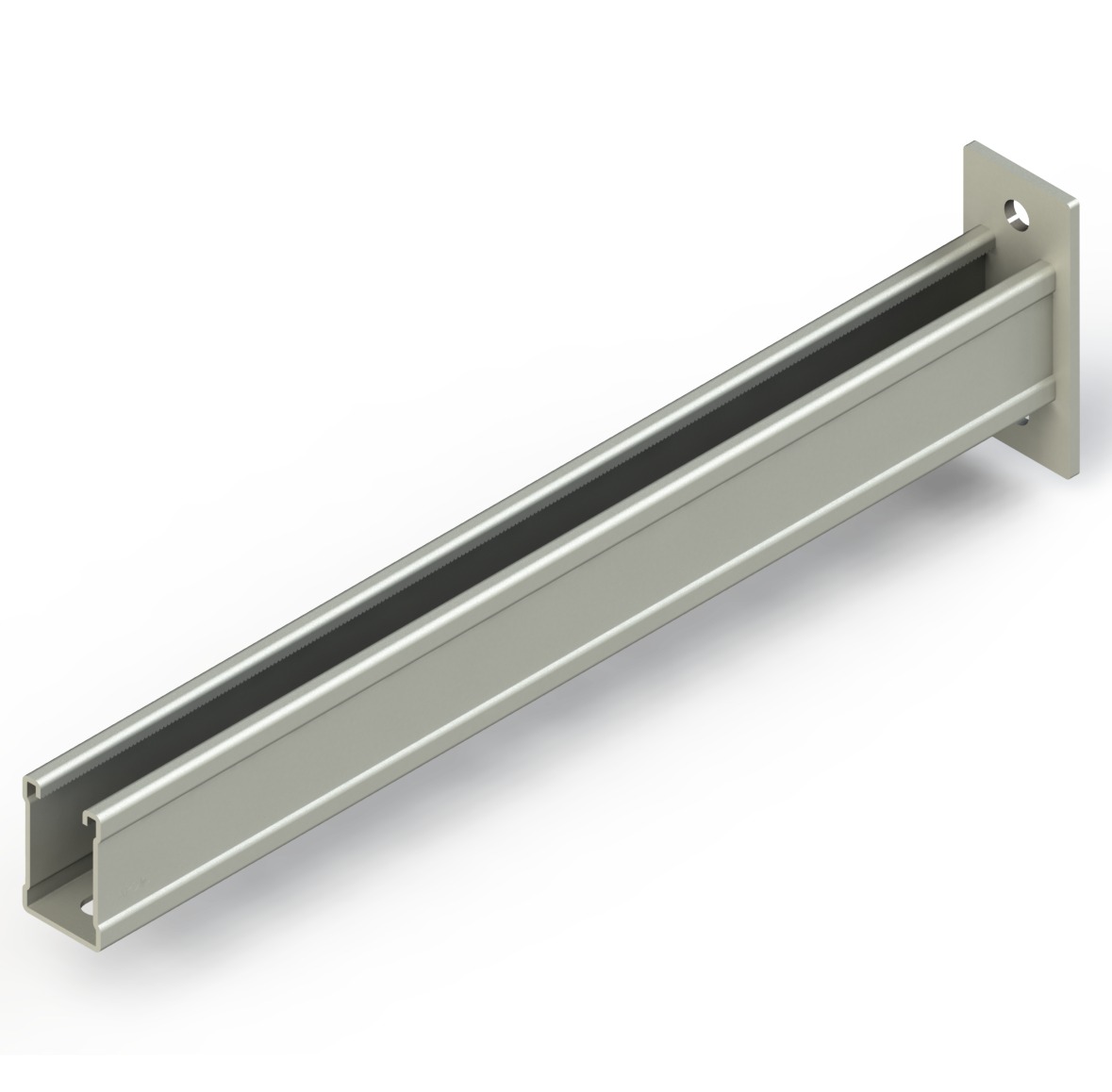

    C Support Bracket, 41х62mm, L:500mm, T:2mm ( Electro Galvanized )

    C Support Bracket, 41х62mm, L:500mm, T:2mm ( Electro Galvanized )
    C Support Bracket, 41х62mm, L:500mm, T:2mm ( Electro Galvanized )
    C Support Bracket, 41х62mm, L:500mm, T:2mm ( Electro Galvanized )
    C Support Bracket, 41х62mm, L:500mm, T:2mm ( Electro Galvanized )
    Code:
    ACK-41-62-50 EG
    Unit: Piece
    Basic features
    Width
    Height
    Coating

    Bracket ACK-41-62 is designed for the installation of cable tray runs, suspension elements, and structures. Can be mounted to walls/ceilings, installed in profiles: AC-21, AC-41, AC-62, or mounted on single and double hangers. Designed for trays with a width of 500 mm. Has a zinc coating and is corrosion-resistant.

    Datasheet

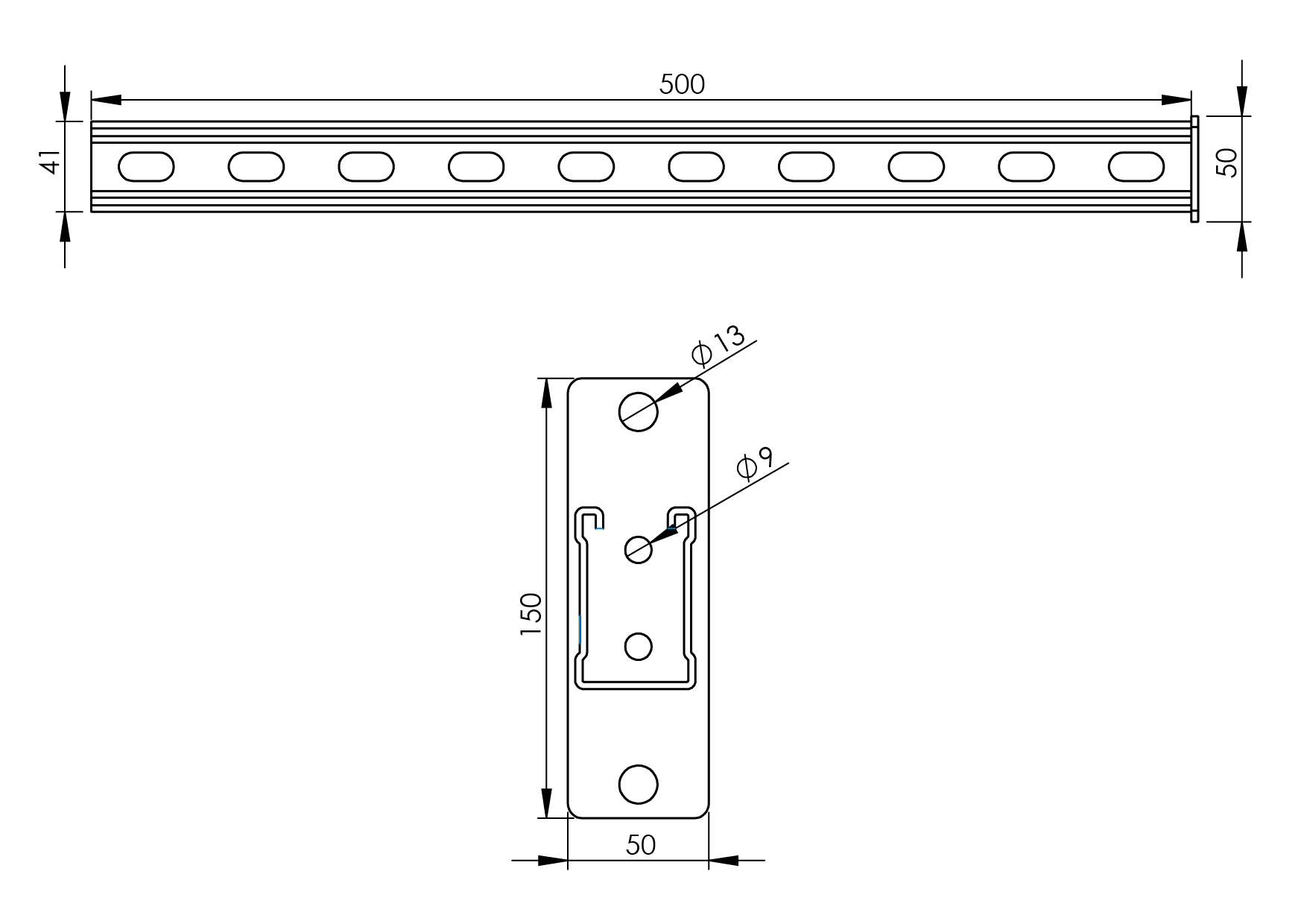

    Specifications:

    Steel thickness: 2 mm
    Color: Light gray
    Width, mm: 50
    Model/execution: Wall bracket
    Height, mm: 150
    Protective surface coating: Electro-galvanized
    Length, mm: 510
    Material: Steel
