    C Support Double Bracket, 41х21mm, L:400mm, T:2mm ( Electro Galvanized )

    C Support Double Bracket, 41х21mm, L:400mm, T:2mm ( Electro Galvanized )
    C Support Double Bracket, 41х21mm, L:400mm, T:2mm ( Electro Galvanized )
    C Support Double Bracket, 41х21mm, L:400mm, T:2mm ( Electro Galvanized )
    C Support Double Bracket, 41х21mm, L:400mm, T:2mm ( Electro Galvanized )
    Code:
    ACKD-41-21-40 EG
    Unit: Piece
    Basic features
    Width
    Height
    Coating

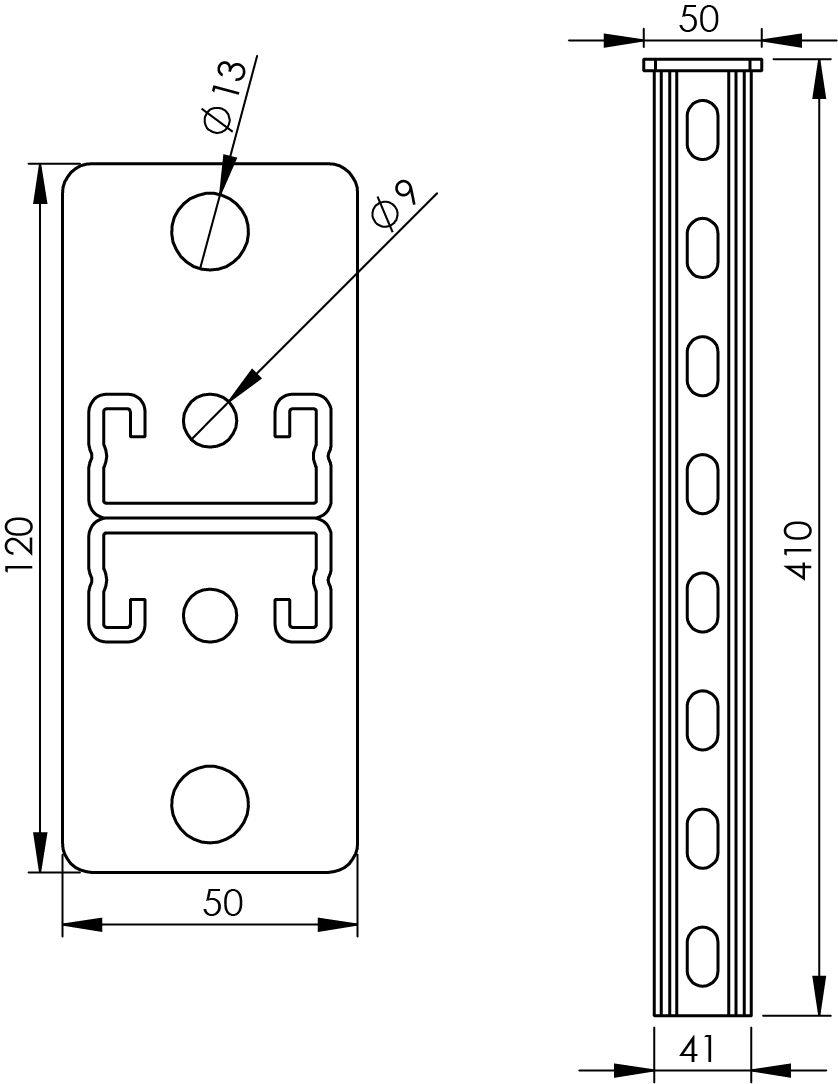

    Bracket ACKD-41-21 is designed for the installation of cable tray runs, suspension elements, and structures. Can be mounted to walls/ceilings, installed in profiles: AC-21, AC-41, or mounted on single and double hangers. Features double-sided mounting capability. Designed for trays with a width of 400 mm. Has a zinc coating and is corrosion-resistant.

    Datasheet

    Specifications:

    Steel thickness: 2 mm
    Color: Light gray
    Width, mm: 50
    Model/execution: Wall bracket
    Height, mm: 85
    Protective surface coating: Electro-galvanized
    Length, mm: 410
    Material: Steel
