    Diamond-shaped cross plate, T:5mm ( Hot Dip Galvanized )

    Diamond-shaped cross plate, T:5mm ( Hot Dip Galvanized )
    Diamond-shaped cross plate, T:5mm ( Hot Dip Galvanized )
    Diamond-shaped cross plate, T:5mm ( Hot Dip Galvanized )
    Diamond-shaped cross plate, T:5mm ( Hot Dip Galvanized )
    Code:
    ACB-218 HDG
    Unit: Piece
    Basic features

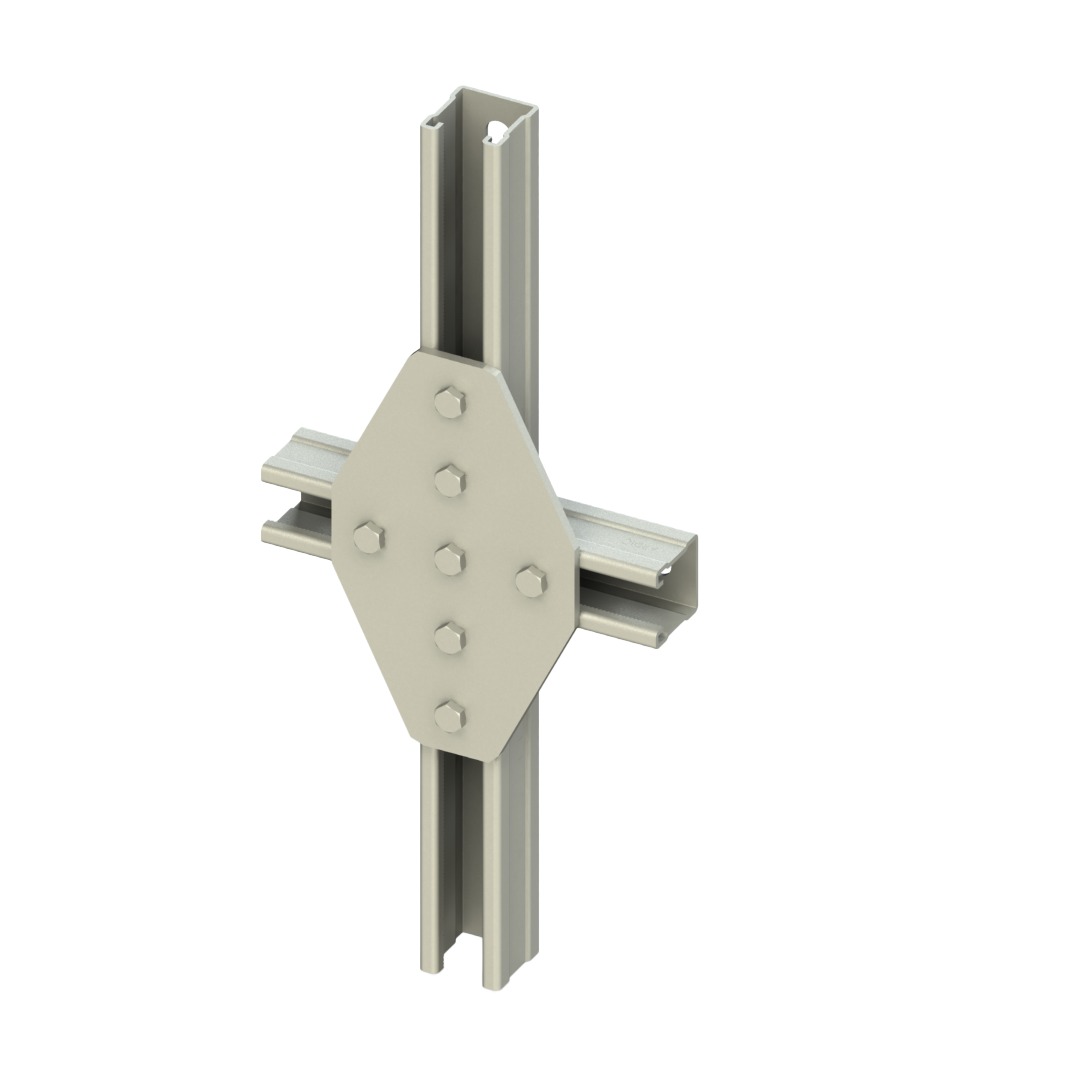

    Designed for reinforced flat cross-shaped connection of C-profiles (strut channels) at a 90° angle within suspension systems and supporting metal structures. The diamond (hexagonal) shape and 6 mounting holes provide maximum mounting node rigidity, prevent deformation under heavy loads, and increase overall structural stability. Hot-dip galvanized (Hot Dip Galvanized) protective coating guarantees high corrosion resistance when operated in high humidity and aggressive environments.

    Datasheet

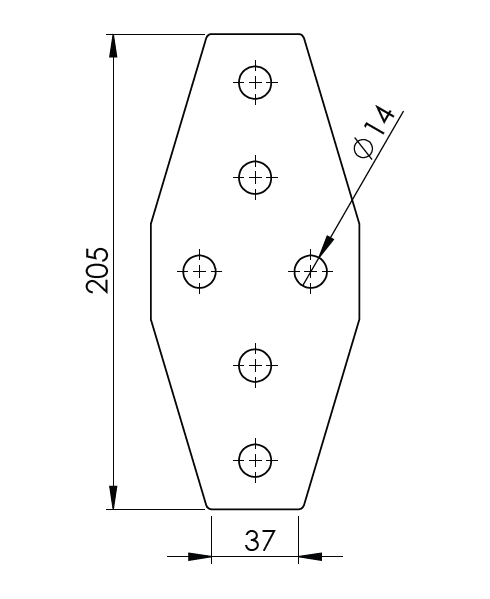

    Specifications:

    Steel thickness: 5.0 mm

    Overall dimensions: 205 x 37 mm (at the narrow part)

    Hole diameter: 14 mm (6 holes)

    Protective coating: Hot-dip galvanizing (HDG)

    Weight: 0.650 kg / pc.
