    Double Bracket, 41х41mm, L:400mm, T:2mm ( Electro Galvanized )

    Double Bracket, 41х41mm, L:400mm, T:2mm ( Electro Galvanized )
    Double Bracket, 41х41mm, L:400mm, T:2mm ( Electro Galvanized )
    Double Bracket, 41х41mm, L:400mm, T:2mm ( Electro Galvanized )
    Double Bracket, 41х41mm, L:400mm, T:2mm ( Electro Galvanized )
    Code:
    ACKD-41-41-40 EG
    Unit: Piece
    Basic features
    Width
    Height
    Coating

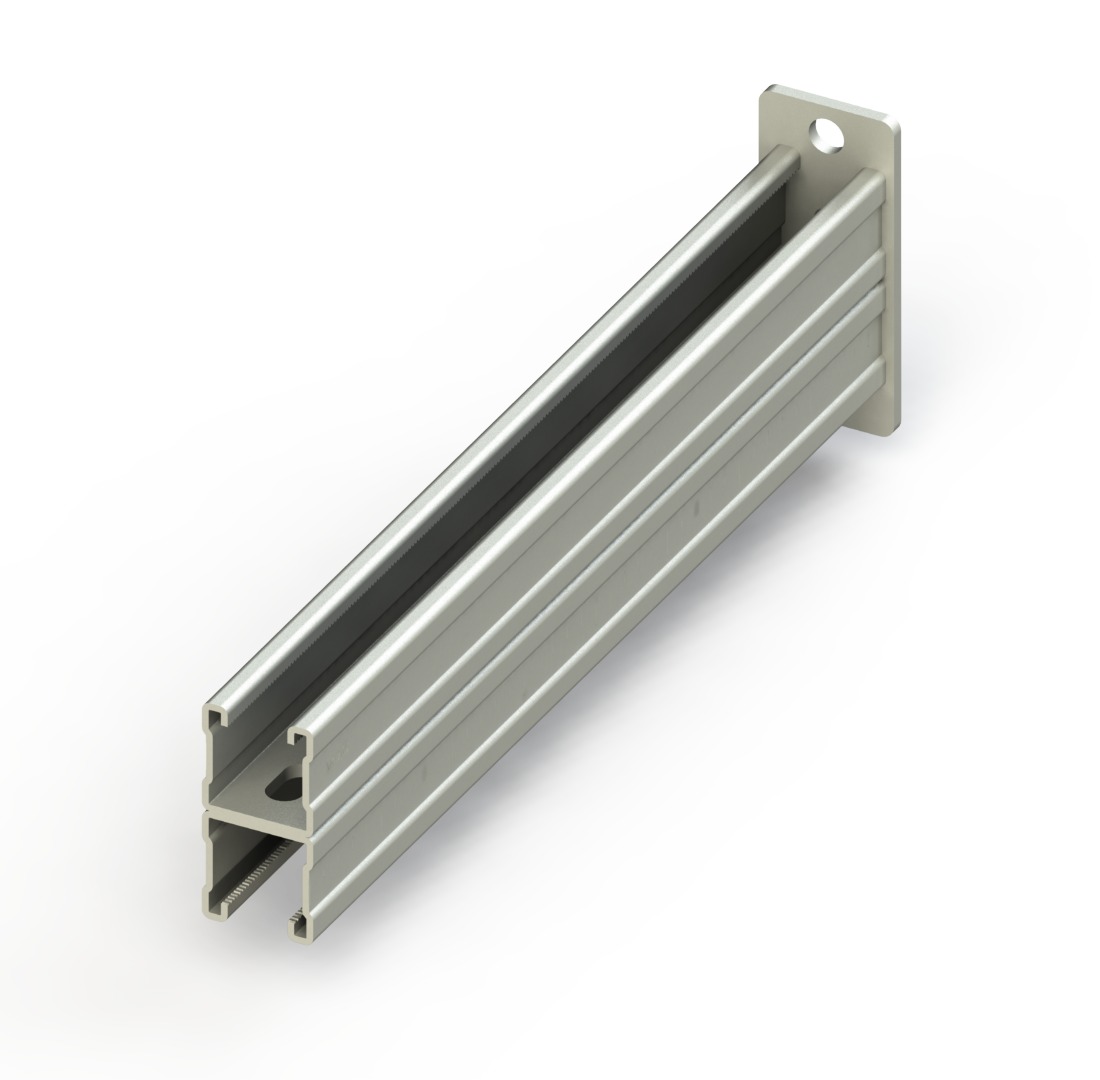

    Bracket ACKD-41-41 is designed for the installation of cable tray runs, suspension elements, and structures. Can be mounted to walls/ceilings, installed in profiles: AC-21, AC-41, or mounted on single and double hangers. Features double-sided mounting capability. Designed for trays with a width of 400 mm. Has a zinc coating and is corrosion-resistant.

    Datasheet

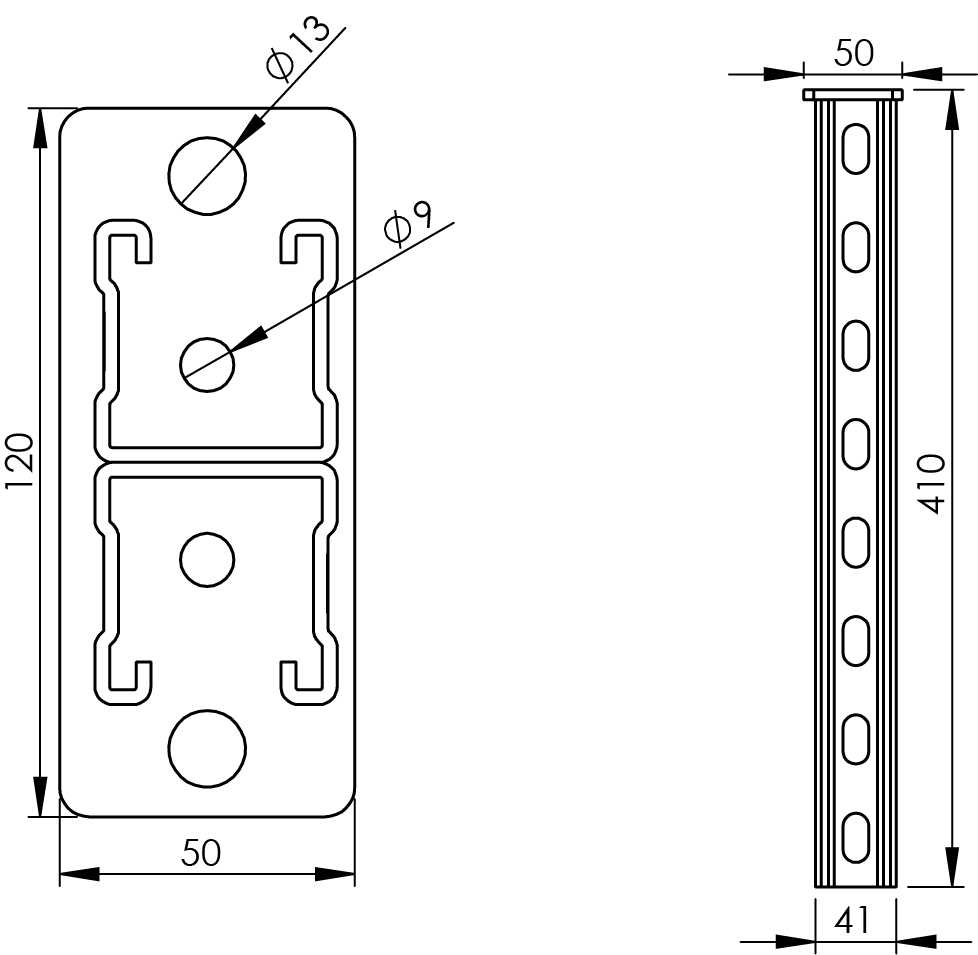

    Specifications:

    Steel thickness: 1.5 mm
    Color: Light gray
    Width, mm: 48
    Model/execution: Wall bracket
    Height, mm: 120
    Protective surface coating: Electro-galvanized
    Length, mm: 410
    Material: Steel

    Download Now
    ACKD-41-41-80 EG
    ACKD-41-41-80 EG
    Double Bracket, 41х41mm, L:800mm, T:2mm ( Electro Galvanized )
    Unit: Piece
    ACB-407 HDG
    ACB-407 HDG
    Three-hole angle connector 90°, T:5mm ( Hot Dip Galvanized )
    Unit: Piece
    ACB-910 HDG
    ACB-910 HDG
    Hinged strut connector plate, T:5mm ( Hot Dip Galvanized )
    Unit: Piece
    ACB-903 HDG
    ACB-903 HDG

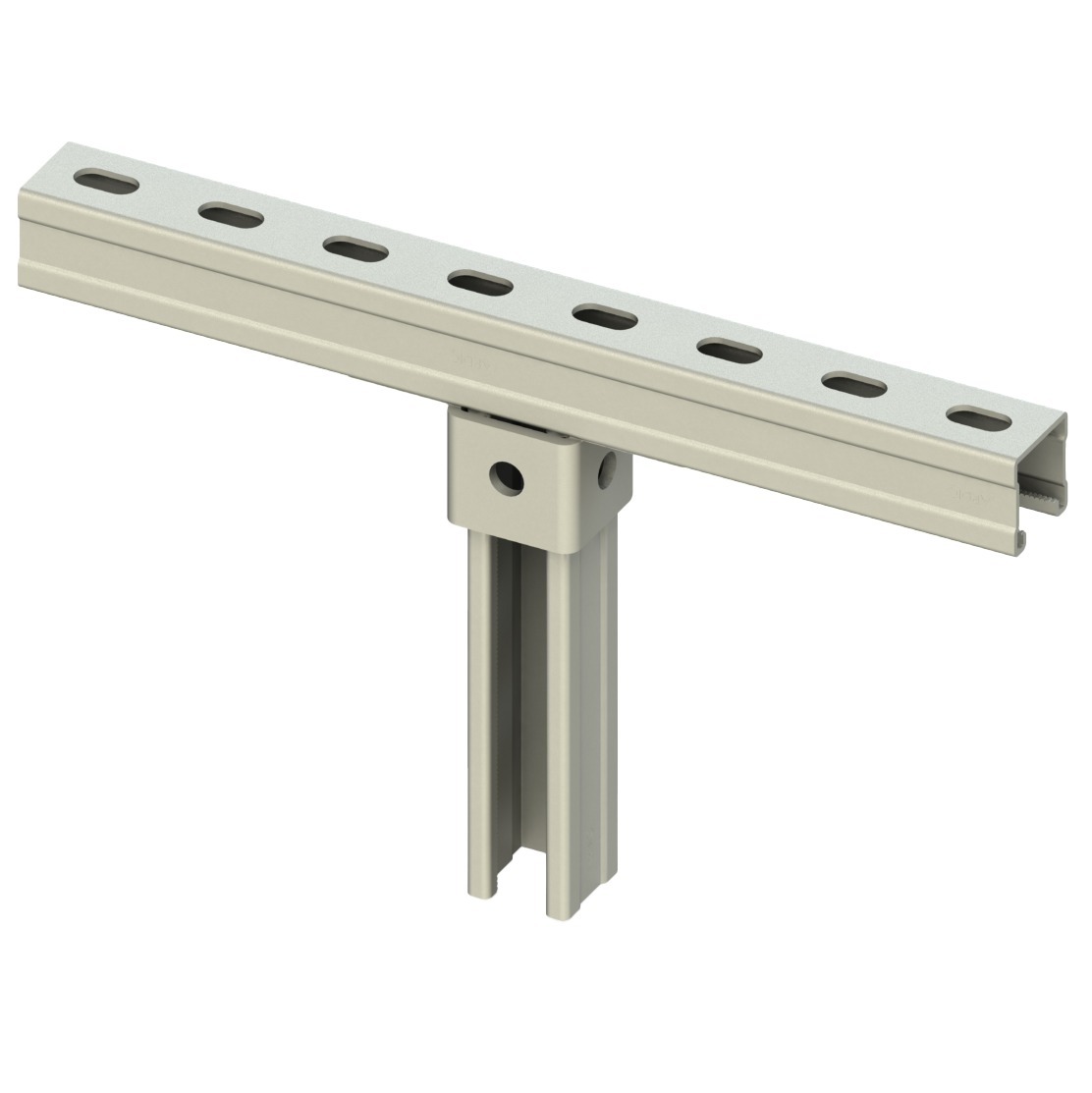

    3D T-shaped connector bracket, T:5mm ( Hot Dip Galvanized )
    Unit: Piece
    ACB-711 HDG
    ACB-711 HDG
    3D T-connector / 3D tee bracket, T:5mm ( Hot Dip Galvanized )
    Unit: Piece
    ACB-505 HDG
    ACB-505 HDG
    Double cross-over clamp bracket, T:5mm ( Hot Dip Galvanized )
    Unit: Piece
