Double Bracket, 41х41mm, L:500mm, T:2mm ( Electro Galvanized )

Name: Double Bracket, 41х41mm, L:500mm, T:2mm ( Electro Galvanized )
SKU: ACKD-41-41-50 EG

Code:

ACKD-41-41-50 EG

Unit: Piece

Basic features

Width

Height

Coating

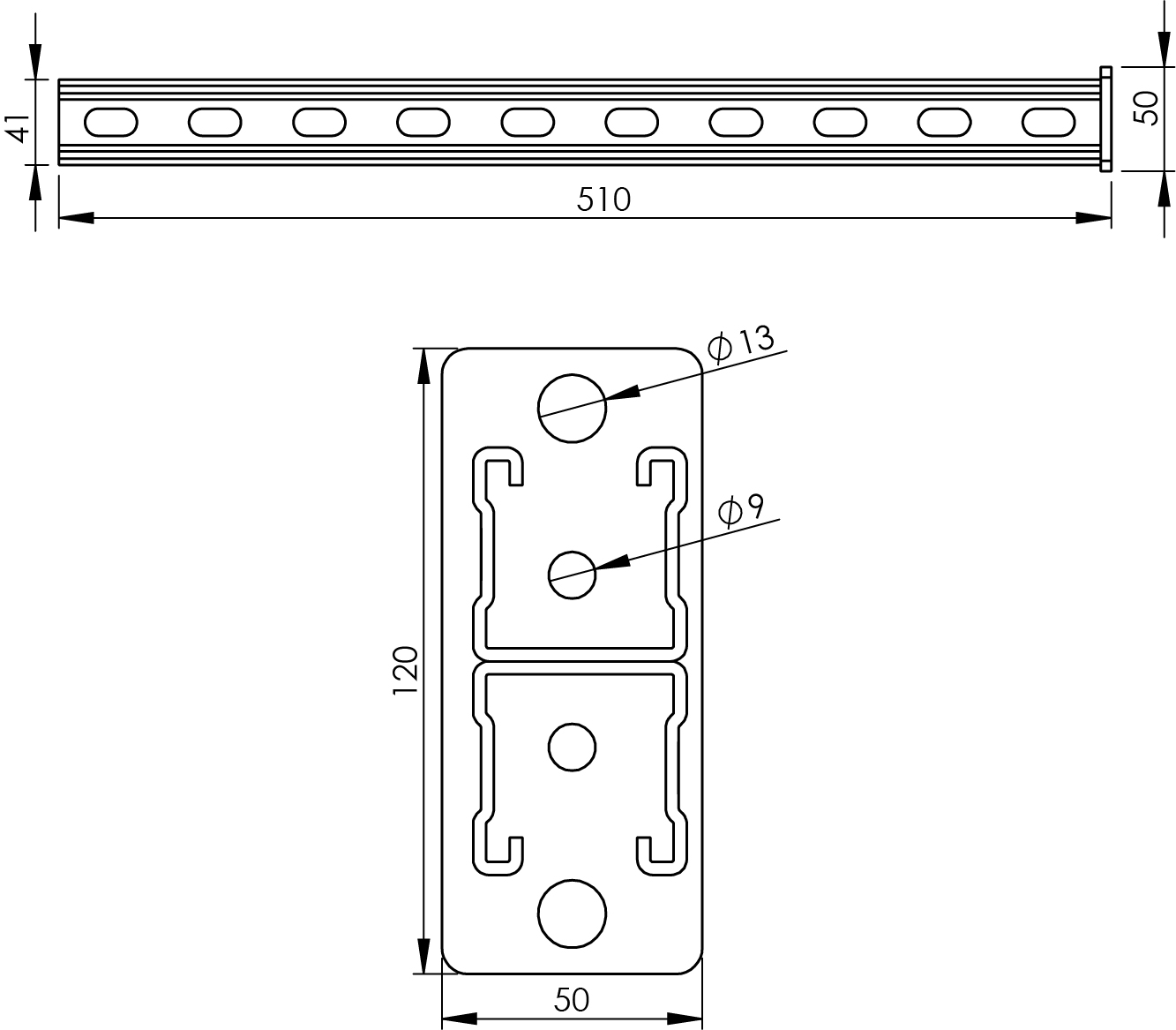

Bracket ACKD-41-41 is designed for the installation of cable tray runs, suspension elements, and structures. Can be mounted to walls/ceilings, installed in profiles: AC-21, AC-41, or mounted on single and double hangers. Features double-sided mounting capability. Designed for trays with a width of 500 mm. Has a zinc coating and is corrosion-resistant.

Datasheet

Specifications:

Steel thickness: 1.5 mm
Color: Light gray
Width, mm: 48
Model/execution: Wall bracket
Height, mm: 120
Protective surface coating: Electro-galvanized
Length, mm: 510
Material: Steel
