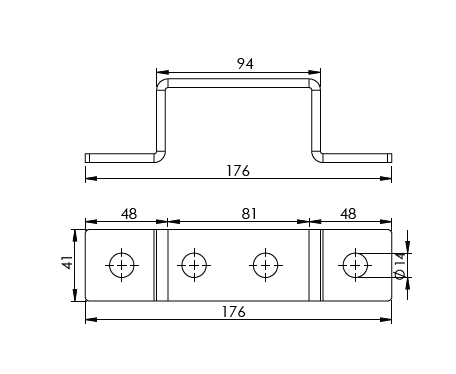

Designed for perpendicular cross-over connection of back-to-back (double) C-profiles (strut channels) with a single profile positioned at different levels. The enlarged U-shaped profile of the bracket tightly wraps around the double strut channel and secures the intersection point via 4 mounting holes (2 on the top plane and 1 on each side tab). Hot-dip galvanized (Hot Dip Galvanized) protective coating guarantees high corrosion resistance when operated in high humidity and aggressive environments.
Code:
ACB-505 HDG
Unit: Piece
Basic features
