Fast Type Bracket L:500mm, T:2mm ( Pre Galvanized )

Fast Type Bracket L:500mm, T:2mm ( Pre Galvanized )
Fast Type Bracket L:500mm, T:2mm ( Pre Galvanized )
Code:
AFK-50 PG
Unit: Piece
Basic features
Width
Coating

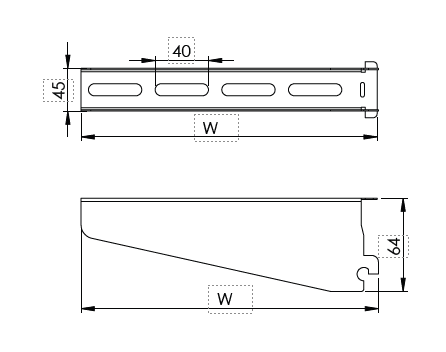

Cable brackets are designed to create safe and cost-effective cable routes. In its most common variation, this product is a U-shaped steel profile that widens towards the base. The cable bracket is attached to racks of various lengths, which in turn are fixed to a vertical surface using the AFB-1 clamp. This design provides sufficient rigidity, reliability, and stability. Such a construction has also found wide application in everyday life for creating inexpensive and reliable shelving units in garages, pantries, summer houses, etc.

Datasheet

Characteristics:

Steel thickness: 2 mm.

Color: Light gray

Base width, mm: 45

Model/execution: Bracket / Cable shelf

Height, mm: 26

Surface protective coating: Pre galvanized

Length, mm: 500

Material: Steel
