Flat cross plate connector, T:5mm ( Hot Dip Galvanized )

Flat cross plate connector, T:5mm ( Hot Dip Galvanized )

Flat cross plate connector, T:5mm ( Hot Dip Galvanized )

Flat cross plate connector, T:5mm ( Hot Dip Galvanized )

Flat cross plate connector, T:5mm ( Hot Dip Galvanized )

Code:

ACB-212 HDG

Unit: Piece

Basic features

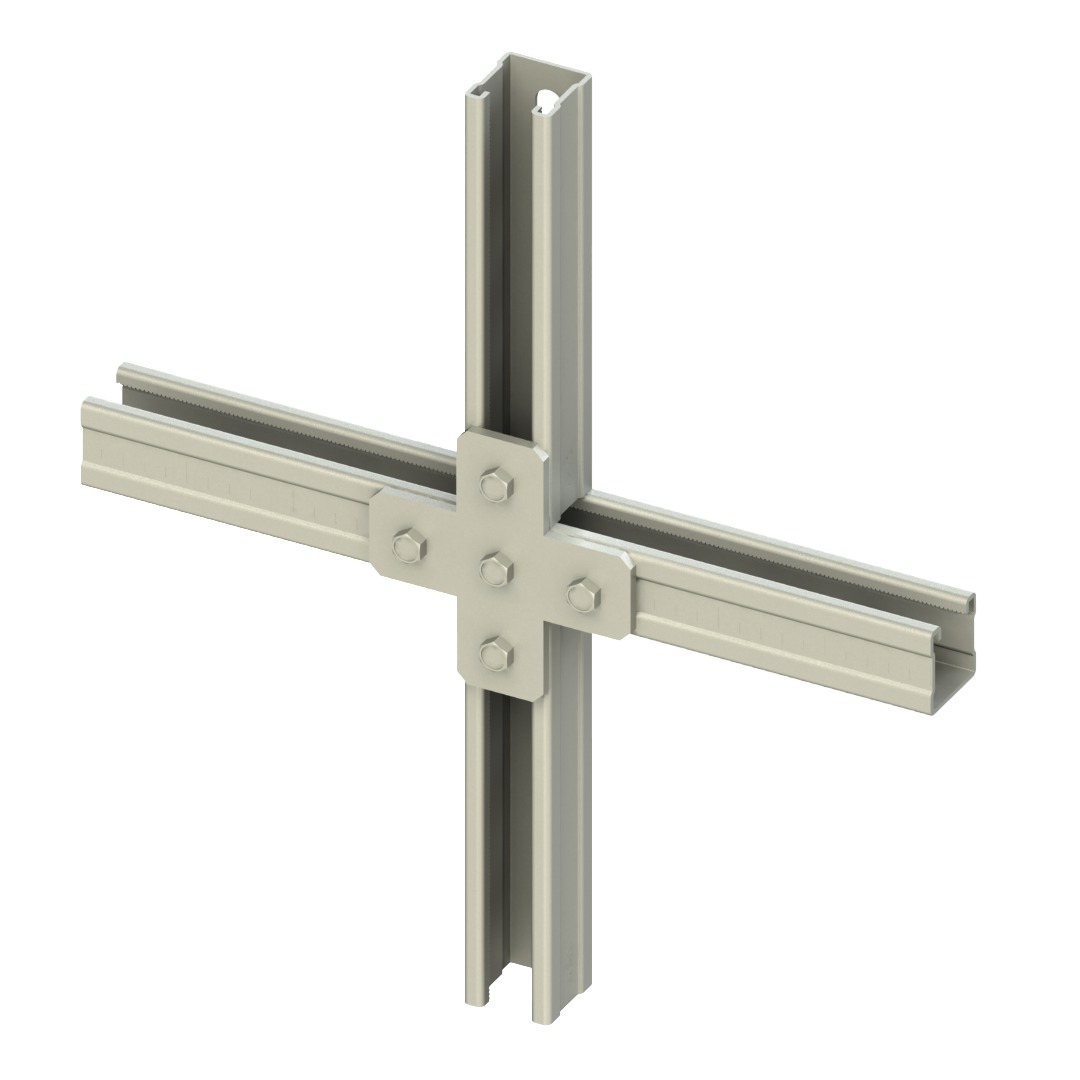

Designed for flat cross-shaped connection of C-profiles (strut channels) at a 90° angle within suspension systems and supporting metal structures. Provides accurate geometric fixation of intersections, even load distribution, and high rigidity of the mounting node during cable run installation. Hot-dip galvanized (Hot Dip Galvanized) protective coating guarantees high corrosion resistance when operated in high humidity and aggressive environments.

Specifications:

Steel thickness: 5.0 mm

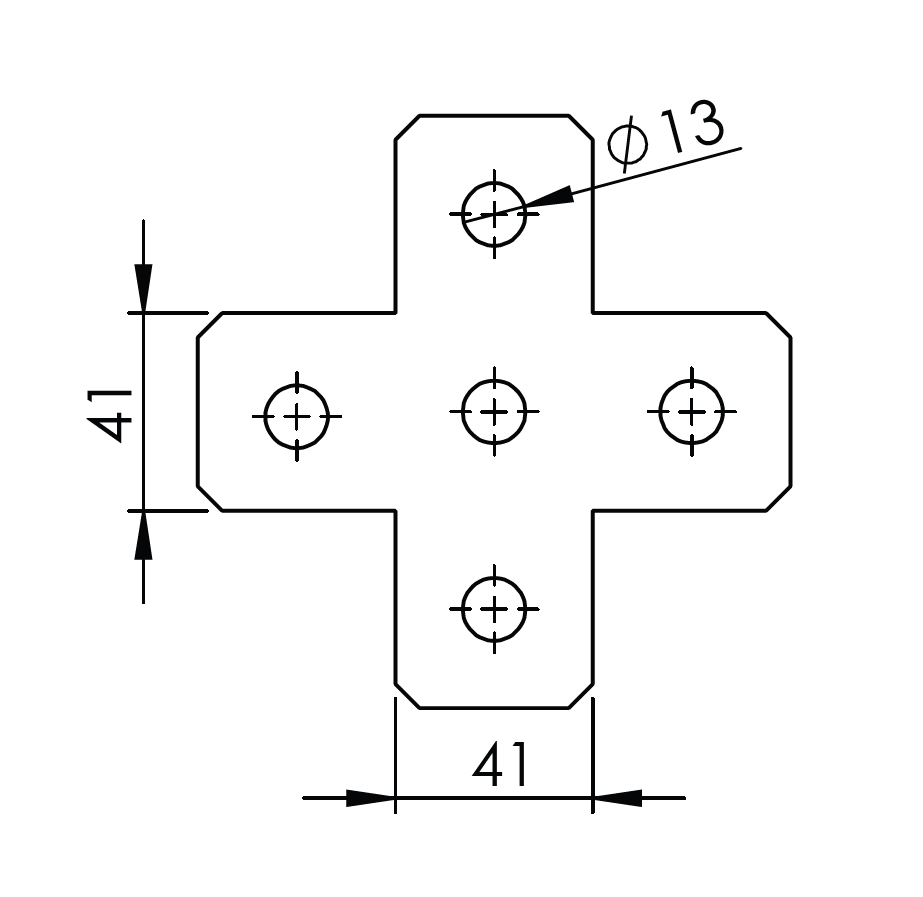

Overall dimensions: 123 x 123 mm (flange width: 41 mm)

Hole diameter: 13 mm (5 holes)

Protective coating: Hot-dip galvanizing (HDG)

Weight: 0.350 kg / pc.

Download Now

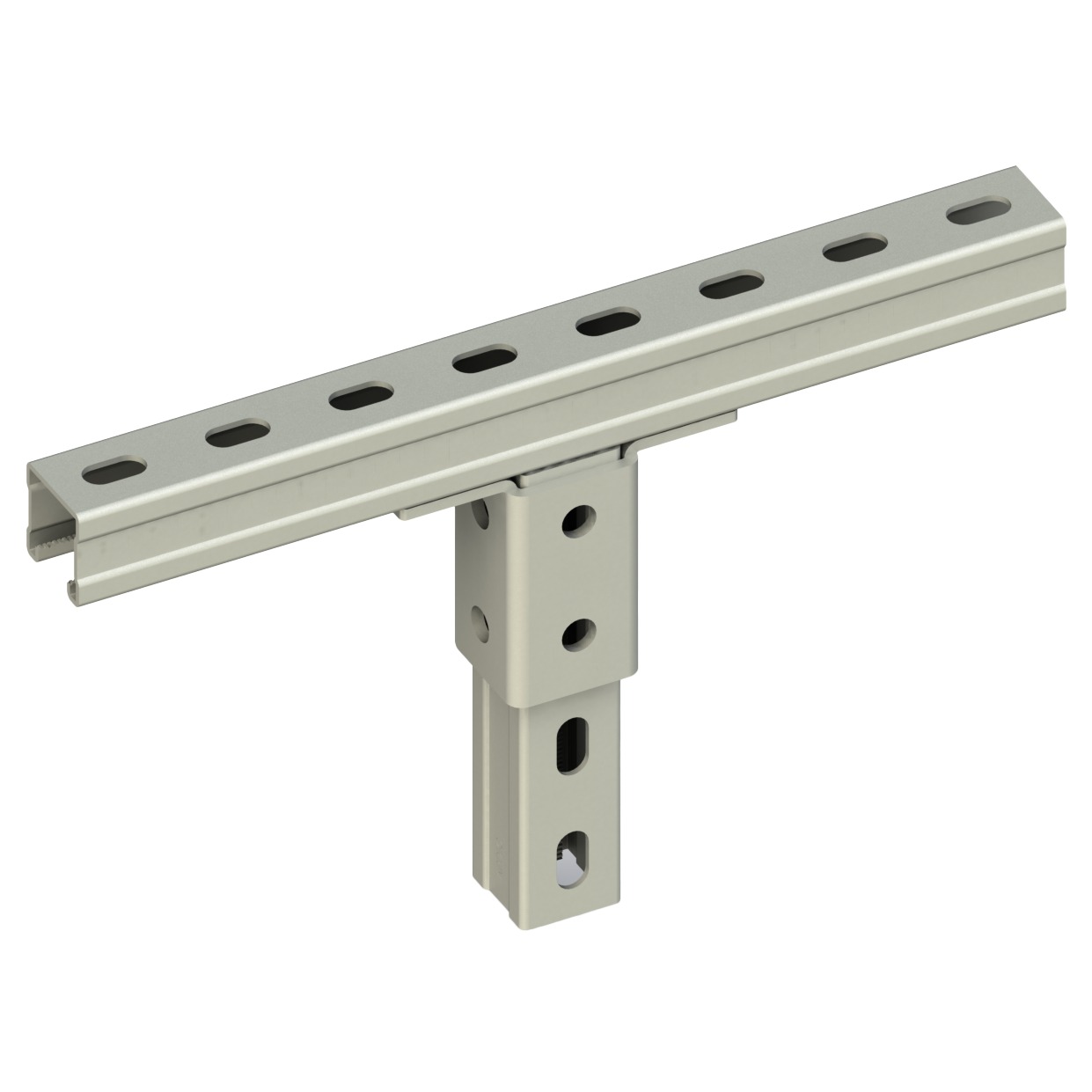

ACB-902 HDG

ACB-902 HDG

3-way spatial tee bracket for strut channel, T:5mm ( Hot Dip Galvanized )

Unit: Piece

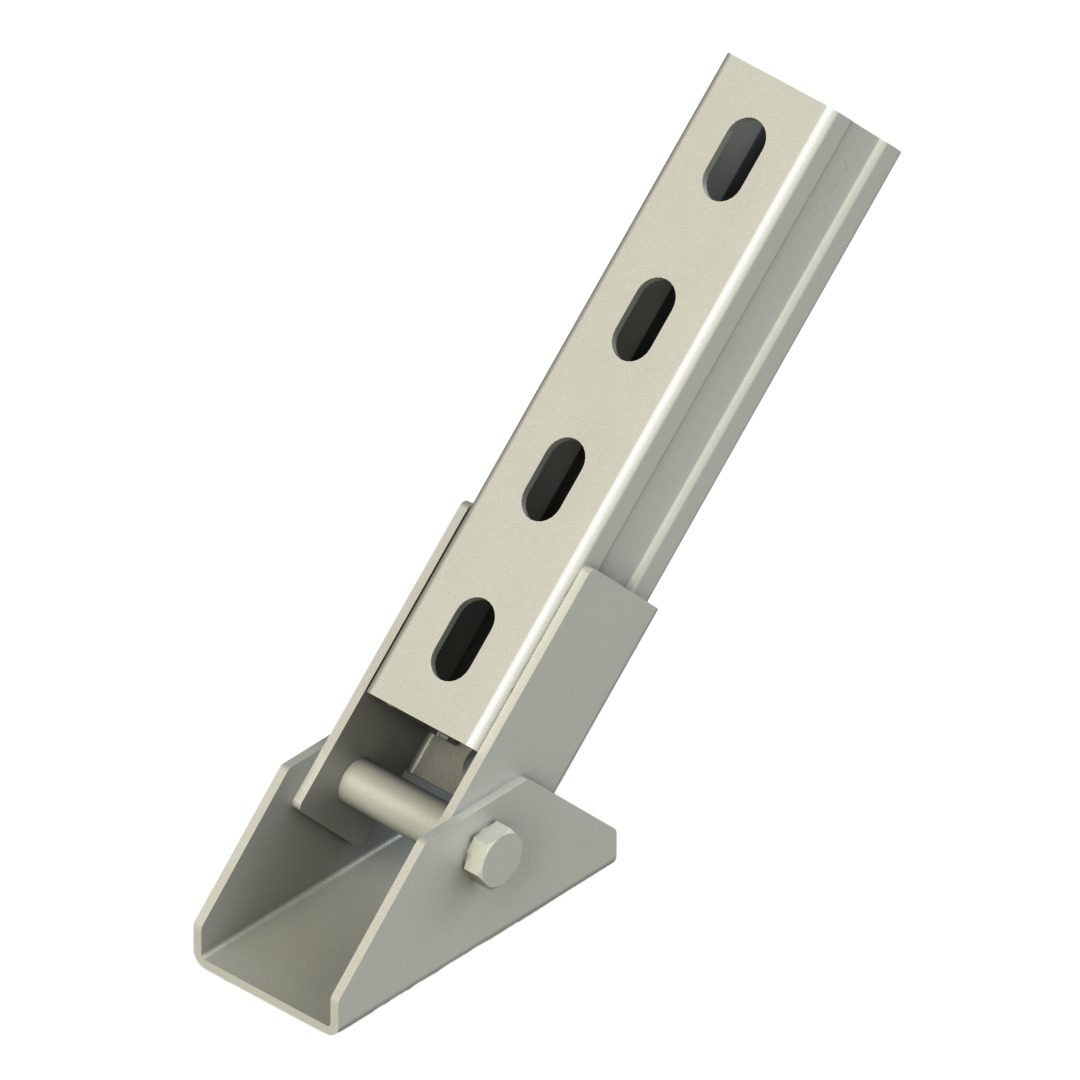

ACB-927 HDG
