Flat T-plate connector, T:5mm ( Hot Dip Galvanized )

Flat T-plate connector, T:5mm ( Hot Dip Galvanized )

Flat T-plate connector, T:5mm ( Hot Dip Galvanized )

Flat T-plate connector, T:5mm ( Hot Dip Galvanized )

Flat T-plate connector, T:5mm ( Hot Dip Galvanized )

Code:

ACB-211 HDG

Unit: Piece

Basic features

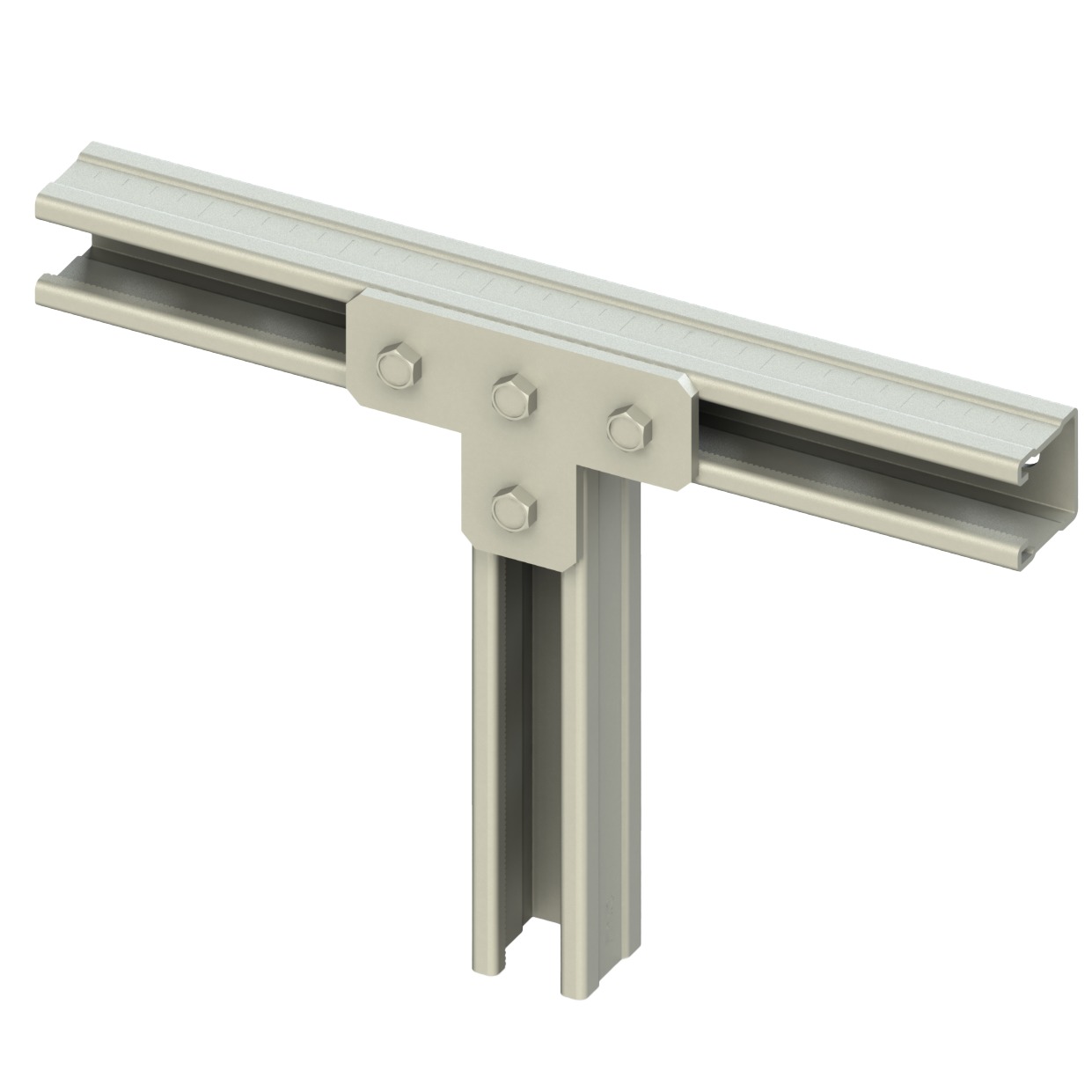

Designed for flat perpendicular (T-shaped) connection of C-profiles (strut channels) within suspension systems and supporting metal structures. Provides accurate geometric fixation of adjoinments and a high level of rigidity for the mounting node during cable run installation. Hot-dip galvanized (Hot Dip Galvanized) protective coating guarantees high corrosion resistance when operated in high humidity and aggressive environments.

Specifications:

Steel thickness: 5.0 mm

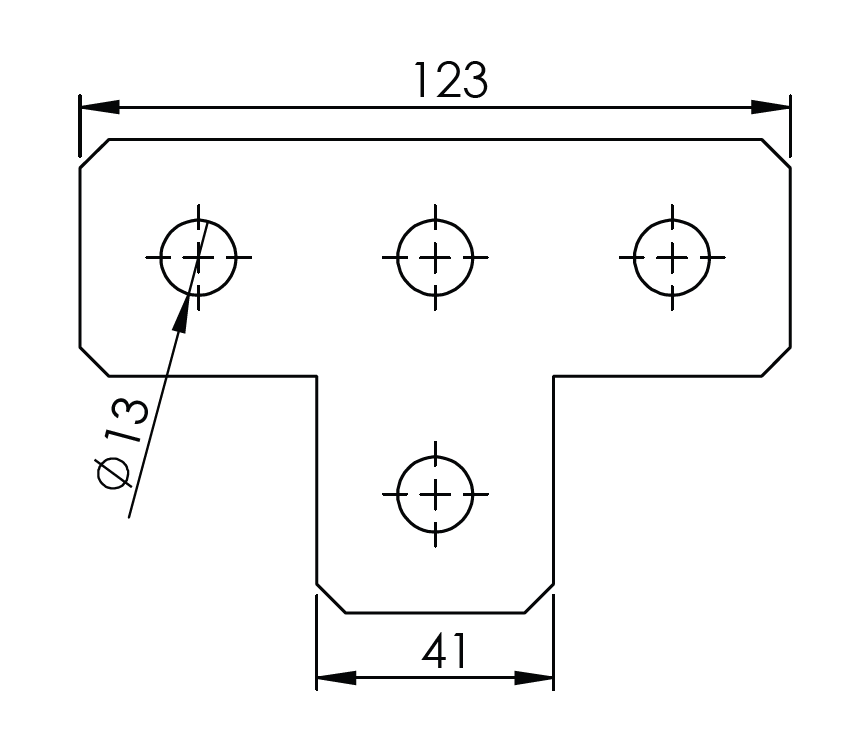

Overall dimensions: 123 x 82 mm (flange width: 41 mm)

Hole diameter: 13 mm (4 holes)

Protective coating: Hot-dip galvanizing (HDG)

Weight: 0.290 kg / pc.

Download Now
