    Four-hole angle connector 90°, T:5mm ( Hot Dip Galvanized )

    Four-hole angle connector 90°, T:5mm ( Hot Dip Galvanized )
    Four-hole angle connector 90°, T:5mm ( Hot Dip Galvanized )
    Four-hole angle connector 90°, T:5mm ( Hot Dip Galvanized )
    Four-hole angle connector 90°, T:5mm ( Hot Dip Galvanized )
    Code:
    ACB-410 HDG
    Unit: Piece
    Basic features

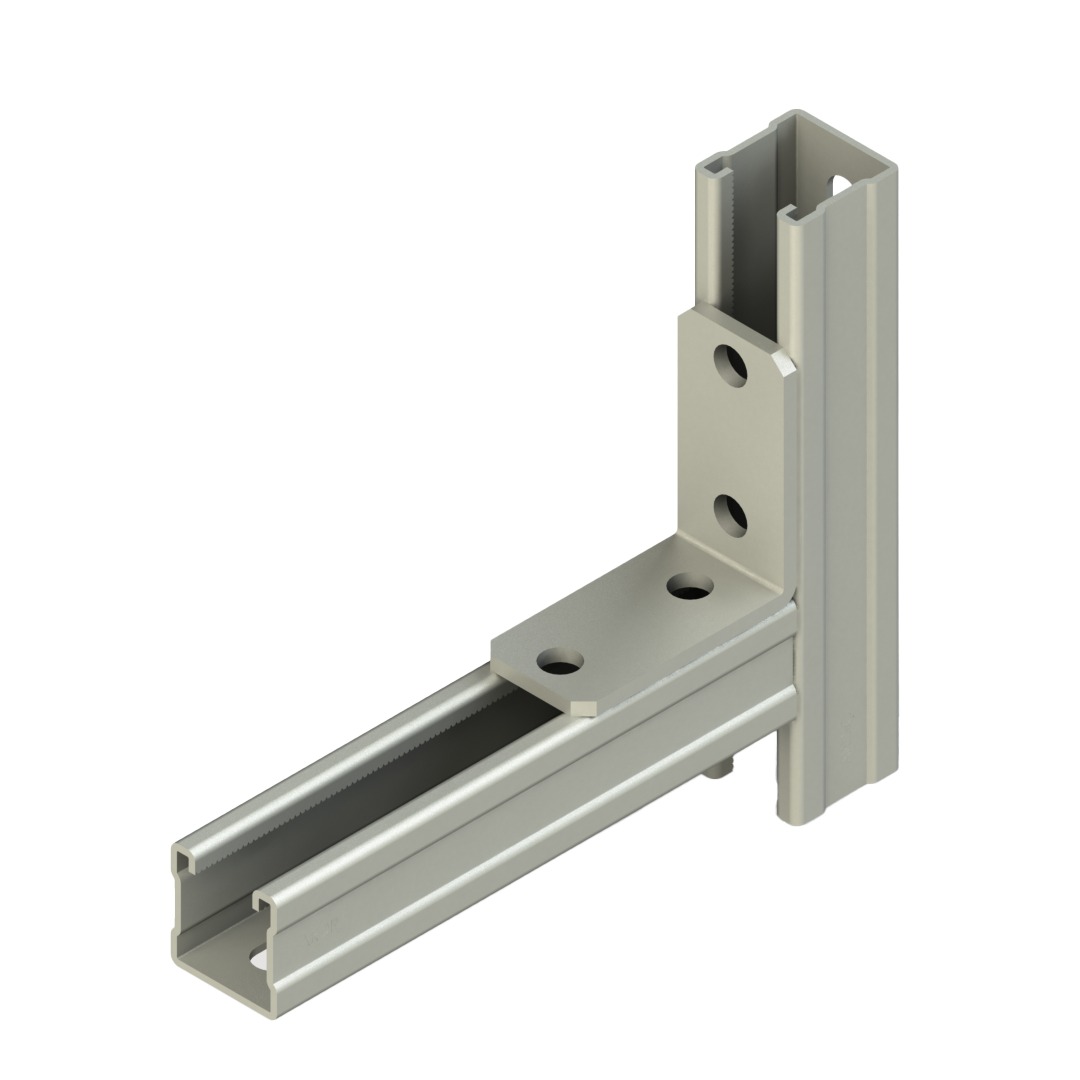

    Designed for perpendicular 90° connection of C-profiles (strut channels) within suspension systems and supporting metal structures. The symmetrical construction with 4 mounting holes (2 on each flange) provides reinforced fastening, maximum joint reliability, and resistance to bending loads during the installation of cable runs and utility networks. Hot-dip galvanized (Hot Dip Galvanized) protective coating guarantees high corrosion resistance when operated in high humidity and aggressive environments.

    Datasheet

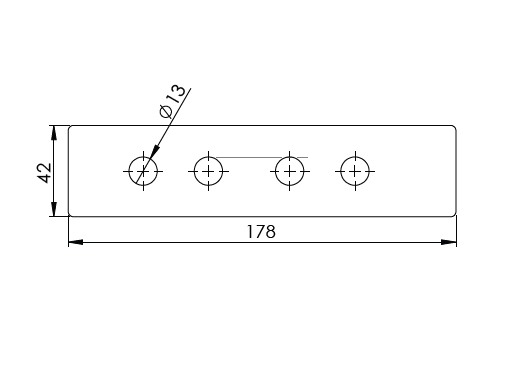

    Specifications:

    Steel thickness: 5.0 mm

    Length: 178 mm

    Width: 42 mm

    Hole diameter: 13 mm (4 holes)

    Protective coating: Hot-dip galvanizing (HDG)

    Weight: 0.320 kg / pc.

    Download Now
