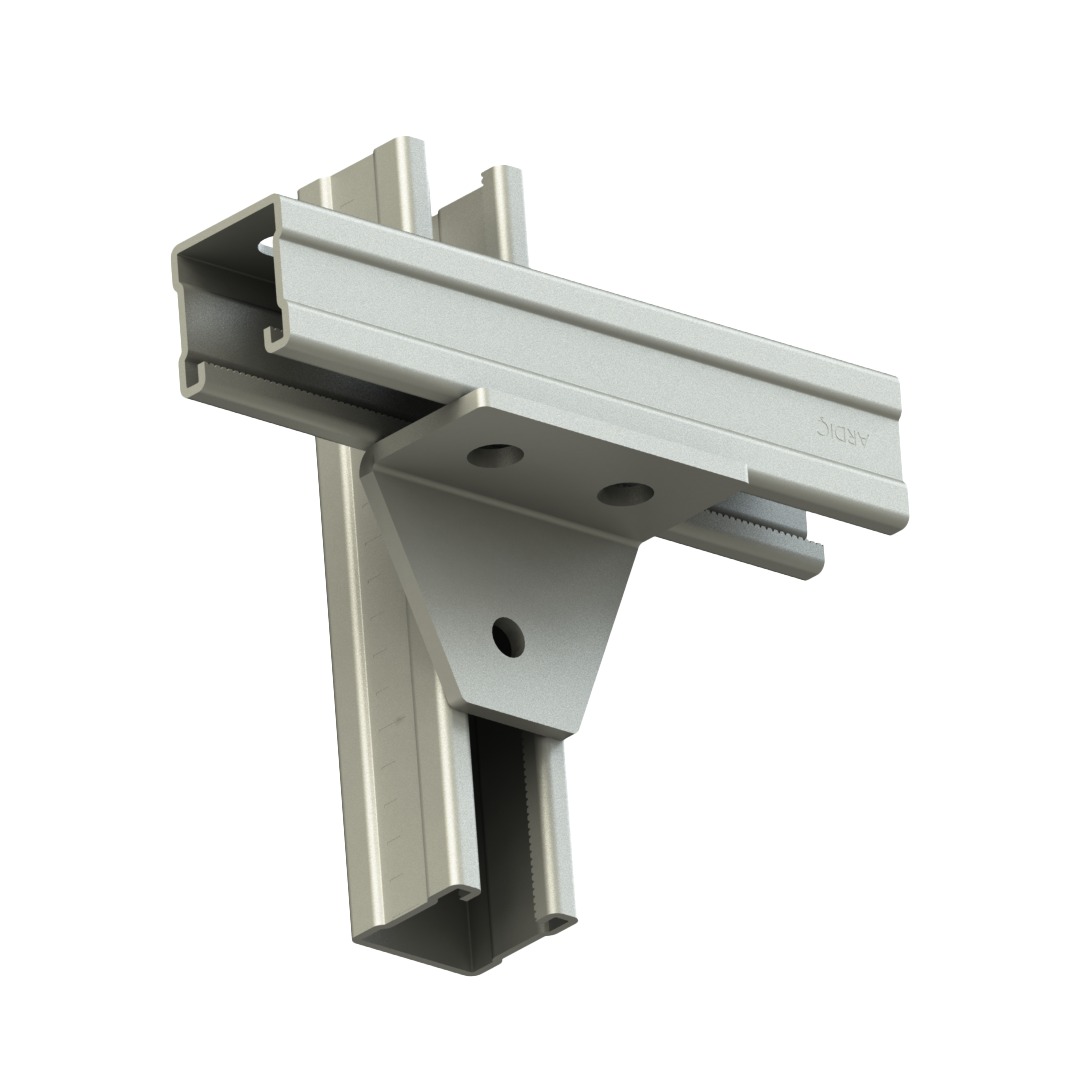

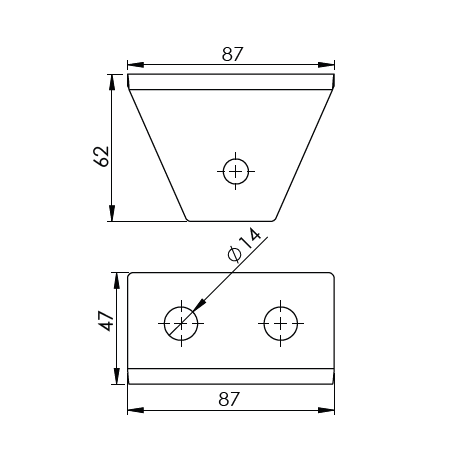

Designed for perpendicular T-joint connection of C-profiles (strut channels) within support frames and cantilever brackets. The fitting combines a 47 mm wide flat support flange with two mounting holes for securing a horizontal beam, and a 62 mm high vertical trapezoidal gusset plate with a central hole for attachment to a post. The design evenly distributes cantilever loads and prevents node bending. Hot-dip galvanized (Hot Dip Galvanized) protective coating guarantees high corrosion resistance when operated in high humidity and aggressive environments.
Code:
ACB-913 HDG
Unit: Piece
Basic features
