    Internal 45° angle C-profile connector, T:5mm ( Hot Dip Galvanized )

    Internal 45° angle C-profile connector, T:5mm ( Hot Dip Galvanized )
    Internal 45° angle C-profile connector, T:5mm ( Hot Dip Galvanized )
    Internal 45° angle C-profile connector, T:5mm ( Hot Dip Galvanized )
    Internal 45° angle C-profile connector, T:5mm ( Hot Dip Galvanized )
    Code:
    ACB-26 HDG
    Unit: Piece
    Basic features

    Designed for connecting C-profiles (strut channels) at a 45° angle when installing braces, struts, and spatial corner ties in supporting metal structures. Ensures system stability under rigidity and dynamic loads. Hot-dip galvanized (Hot Dip Galvanized) protective coating guarantees high corrosion resistance when operated in high humidity and aggressive environments.

    Datasheet

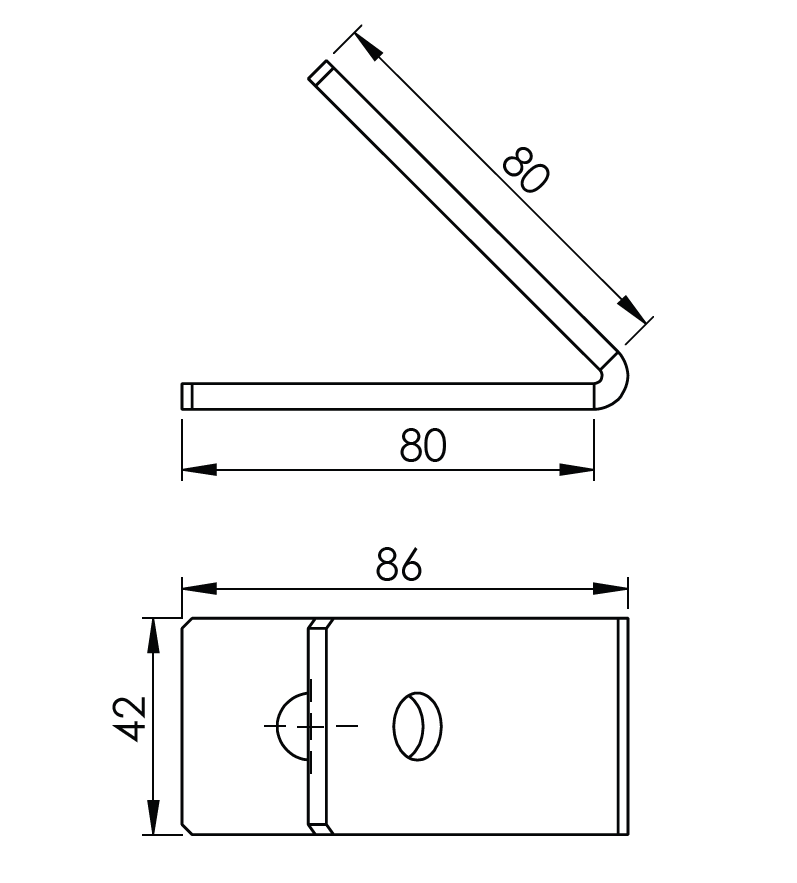

    Specifications:

    Steel thickness: 5.0 mm

    Flange lengths: 80 x 80 mm

    Width: 42 mm

    Protective coating: Hot-dip galvanizing (HDG)

    Weight: 0.290 kg / pc.
