    L-shaped (corner) C-profile connector, T:5mm ( Hot Dip Galvanized )

    L-shaped (corner) C-profile connector, T:5mm ( Hot Dip Galvanized )
    L-shaped (corner) C-profile connector, T:5mm ( Hot Dip Galvanized )
    L-shaped (corner) C-profile connector, T:5mm ( Hot Dip Galvanized )
    L-shaped (corner) C-profile connector, T:5mm ( Hot Dip Galvanized )
    Code:
    ACB-9 HDG
    Unit: Piece
    Basic features

    Designed for perpendicular (corner and T-joint) connection of C-profiles (strut channels) at a 90° angle within mounting systems and supporting structures for cable runs. Provides high rigidity of the fixing assembly and resistance to bending loads. Hot-dip galvanized (Hot Dip Galvanized) protective coating ensures high corrosion resistance when operated in high humidity and aggressive environments.

    Datasheet

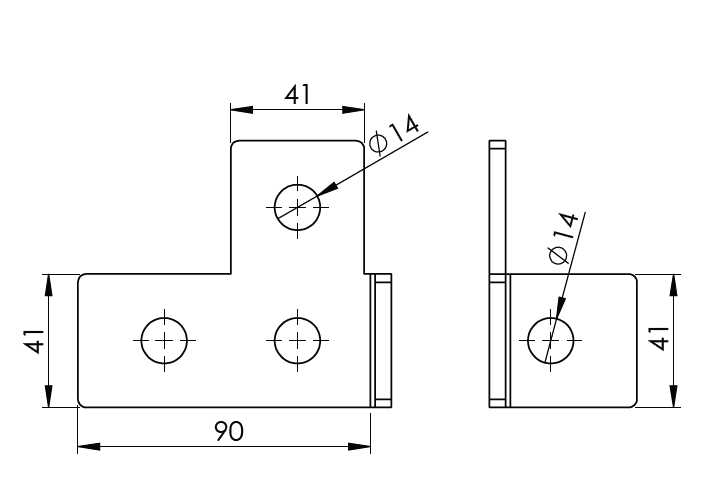

    Specifications:

    Steel thickness: 5.0 mm
    Overall dimensions (LxWxH): 90 x 41 x 41 mm
    Hole diameter: 14 mm
    Protective coating: Hot-dip galvanizing (HDG)
    Weight: 0.240 kg / pc.
