    Obtuse angle curved plate, T:5mm ( Hot Dip Galvanized )

    Obtuse angle curved plate, T:5mm ( Hot Dip Galvanized )
    Obtuse angle curved plate, T:5mm ( Hot Dip Galvanized )
    Obtuse angle curved plate, T:5mm ( Hot Dip Galvanized )
    Obtuse angle curved plate, T:5mm ( Hot Dip Galvanized )
    Code:
    ACB-302 HDG
    Unit: Piece
    Basic features

    Designed for joining C-profiles (strut channels) at an obtuse angle within suspension systems and supporting metal structures. The curved/bent construction with two mounting holes provides reliable fixation of inclined elements and node resistance to bending loads during cable run installation. Hot-dip galvanized (Hot Dip Galvanized) protective coating guarantees high corrosion resistance when operated in high humidity and aggressive environments.

    Datasheet

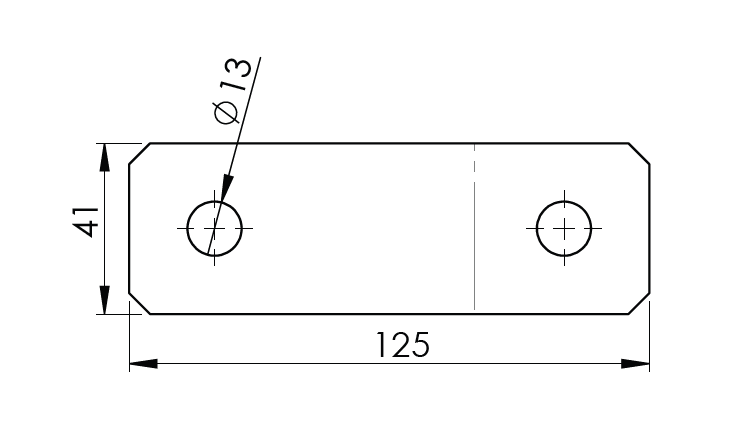

    Specifications:

    Steel thickness: 5.0 mm

    Length: 125 mm

    Width: 41 mm

    Hole diameter: 13 mm (2 holes)

    Protective coating: Hot-dip galvanizing (HDG)

    Weight: 0.230 kg / pc.
