    Suspension Clamp L:100mm, T:1,2mm ( Pre Galvanized )

    Suspension Clamp L:100mm, T:1,2mm ( Pre Galvanized )
    Suspension Clamp L:100mm, T:1,2mm ( Pre Galvanized )
    Suspension Clamp L:100mm, T:1,2mm ( Pre Galvanized )
    Suspension Clamp L:100mm, T:1,2mm ( Pre Galvanized )
    Code:
    A5-3-10 PG
    Unit: Piece
    Basic features
    Width
    Coating

    It is used to arrange a cable route suspension with a light load on a single threaded rod. The maximum width of compatible trays is 100 mm. A corrosion-resistant, zinc-rich coating extends the product's service life in aggressive environments and high-humidity conditions.

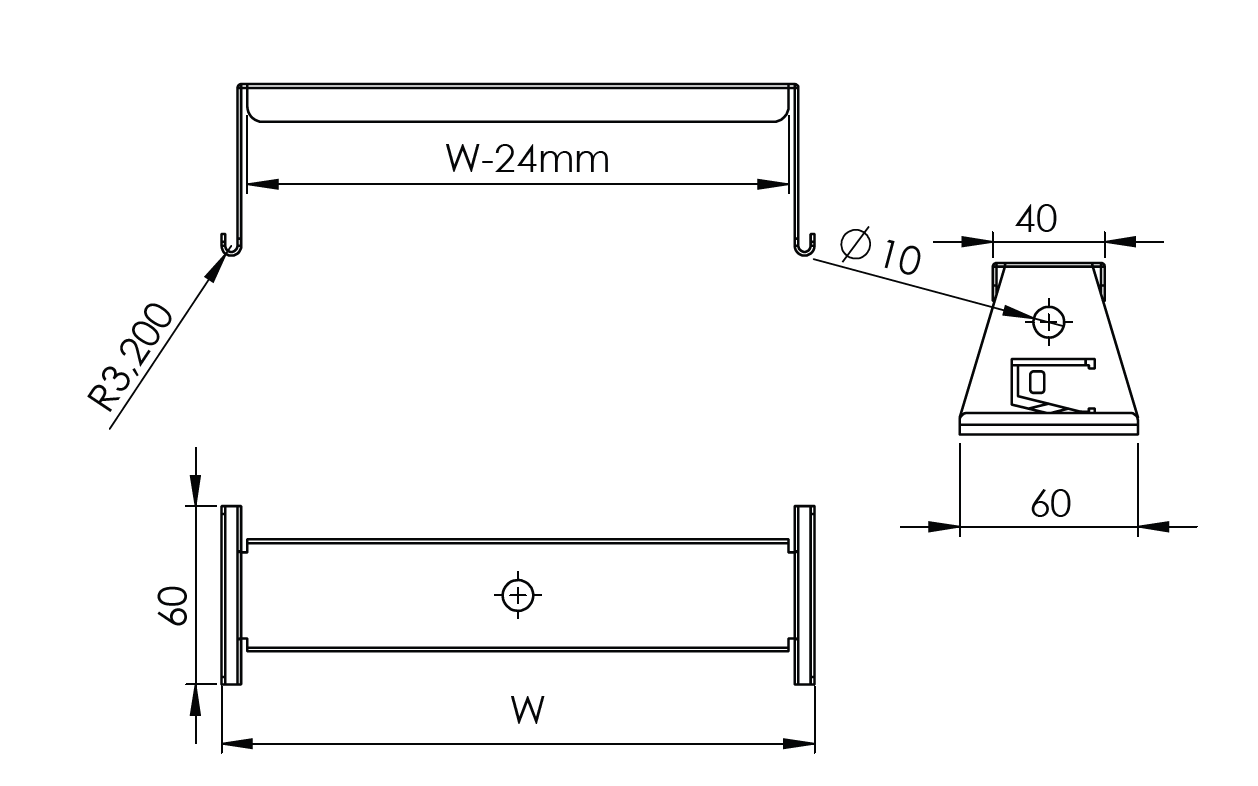

    Datasheet

    Characteristics:

    Steel thickness: 1.2 mm.

    Color: Light gray

    Base width, mm: 60

    Model/execution: Suspension bracket (overhead)

    Height, mm: 60

    Surface protective coating: Pre Galvanized

    Length, mm: 100

    Material: Steel
