    Trapezoidal T-shaped plate, T:5mm ( Hot Dip Galvanized )

    Trapezoidal T-shaped plate, T:5mm ( Hot Dip Galvanized )
    Trapezoidal T-shaped plate, T:5mm ( Hot Dip Galvanized )
    Trapezoidal T-shaped plate, T:5mm ( Hot Dip Galvanized )
    Trapezoidal T-shaped plate, T:5mm ( Hot Dip Galvanized )
    Code:
    ACB-217 HDG
    Unit: Piece
    Basic features

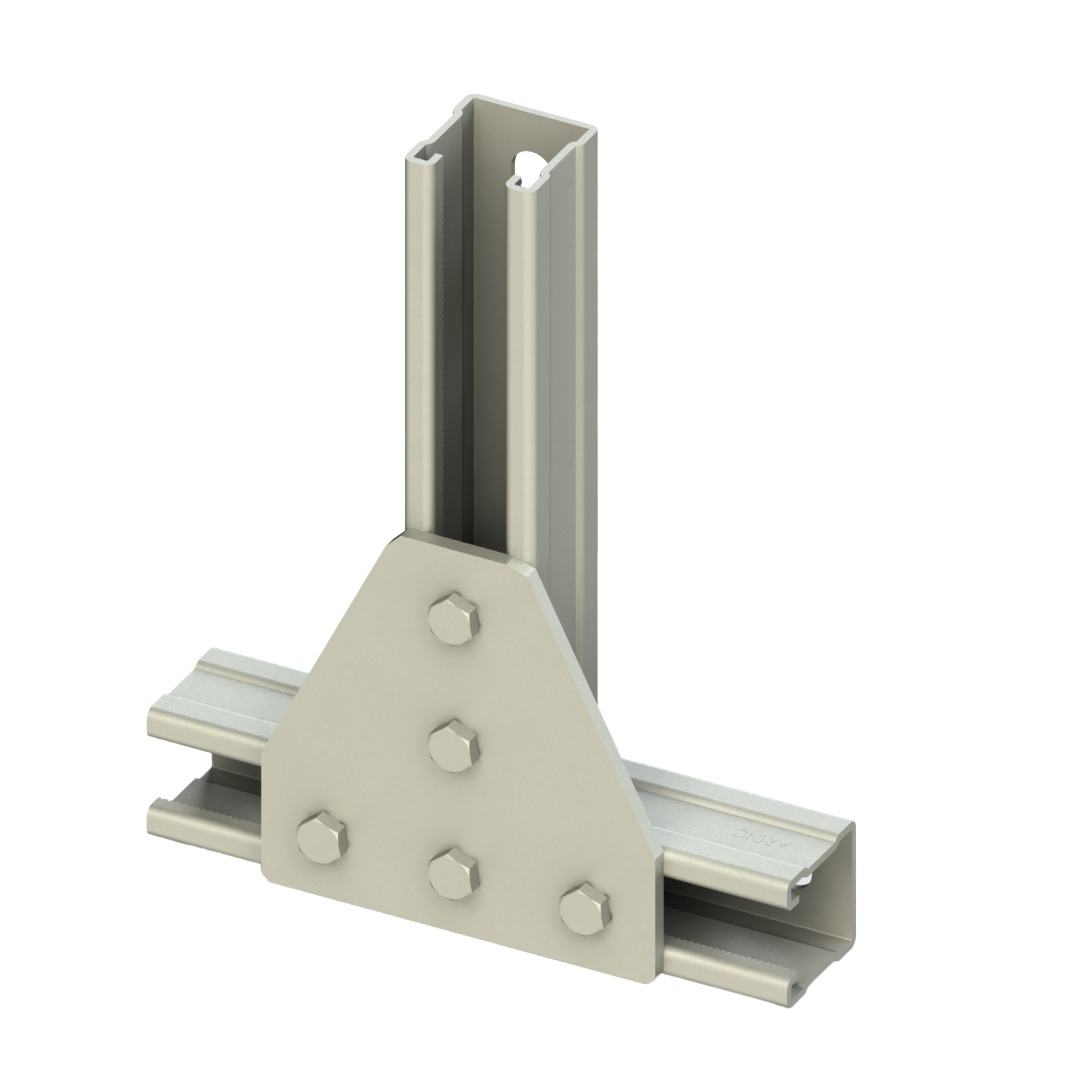

    Designed for reinforced flat perpendicular (T-shaped) connection of C-profiles (strut channels) within suspension systems and supporting metal structures. The trapezoidal shape and 5 mounting holes provide maximum joint strength, evenly distribute loads, and increase resistance to bending moments along the cable run. Hot-dip galvanized (Hot Dip Galvanized) protective coating guarantees high corrosion resistance when operated in high humidity and aggressive environments.

    Datasheet

    Specifications:

    Steel thickness: 5.0 mm

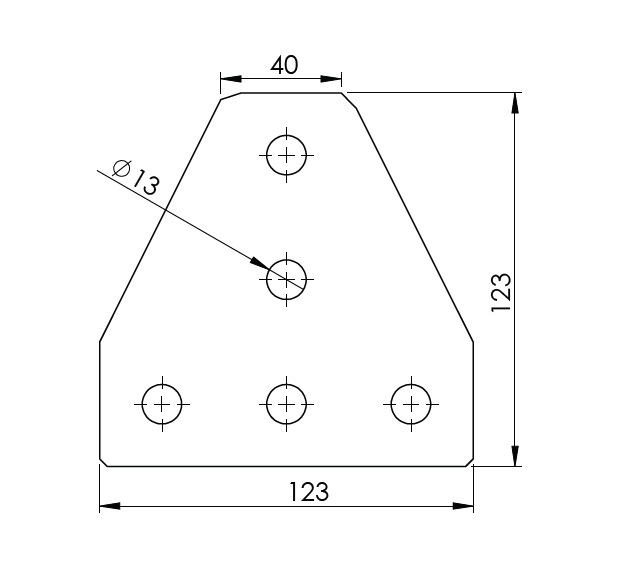

    Overall dimensions: 123 x 123 mm (top edge width: 40 mm)

    Hole diameter: 13 mm (5 holes)

    Protective coating: Hot-dip galvanizing (HDG)

    Weight: 0.580 kg / pc.
