Z-shaped cross-over clamp bracketH: 41 mm · T: 5 mm · Hot Dip Galvanized

Name: Z-shaped cross-over clamp bracket, H:41mm, T:5mm ( Hot Dip Galvanized )
SKU: ACB-703-41 HDG

Code:

ACB-703-41 HDG

Unit: Piece

Basic features

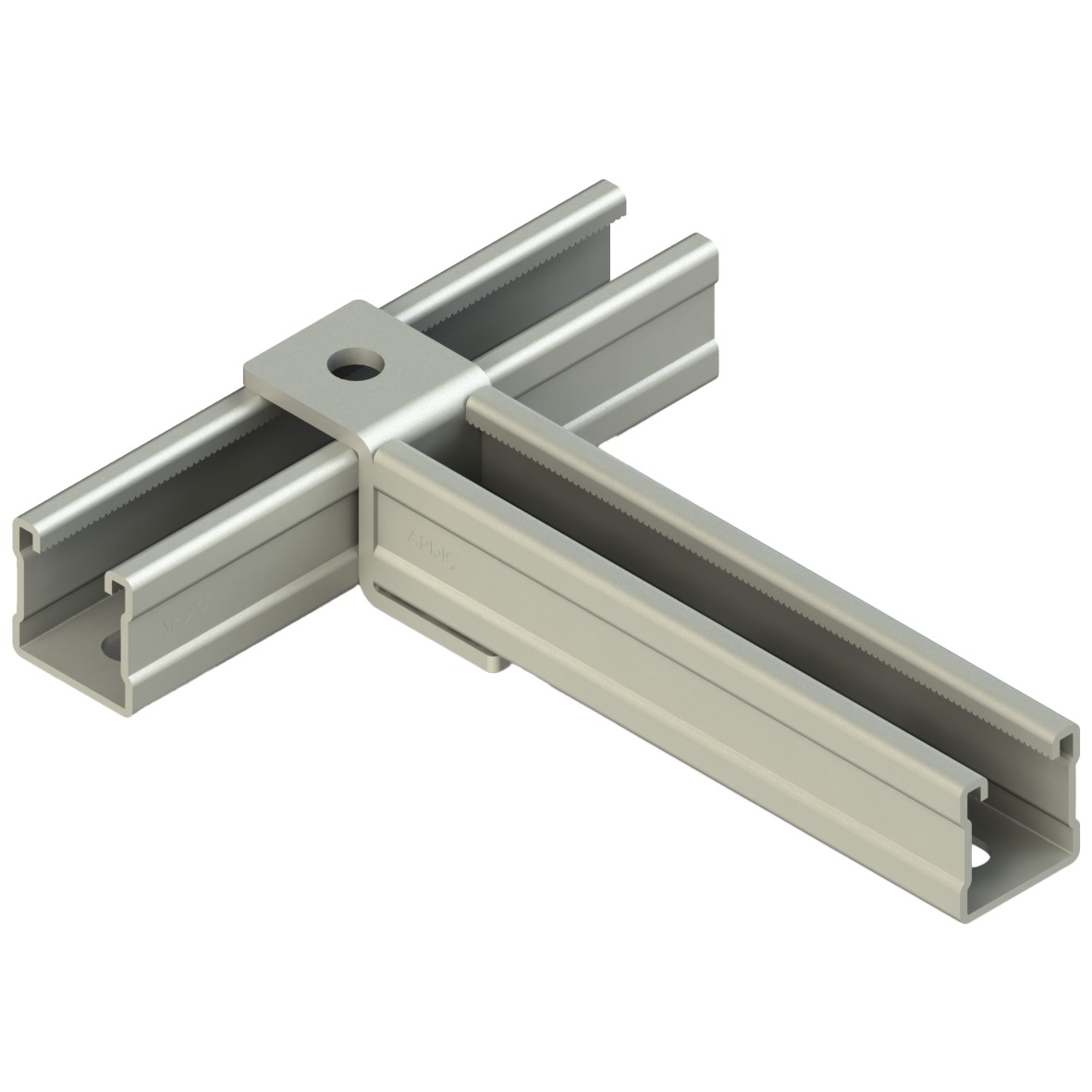

Designed for perpendicular two-level lap connection of C-profiles (strut channels). The Z-shaped design featuring a 46 mm step-down offset allows securing a profile running over another, ensuring reliable fixation of the intersection node. Equipped with 2 mounting holes (1 on the top flange and 1 on the bottom flange) for bolt fastening. Hot-dip galvanized (Hot Dip Galvanized) protective coating guarantees high corrosion resistance when operated in high humidity and aggressive environments.

Datasheet

Specifications:

Steel thickness: 5.0 mm

Step height: 46 mm

Width: 41 mm

Flange length: 41 mm (overall length: 82 mm)

Hole diameter: 13 mm (2 holes)

Protective coating: Hot-dip galvanizing (HDG)

Weight: 0.240 kg / pc.

Download Now
