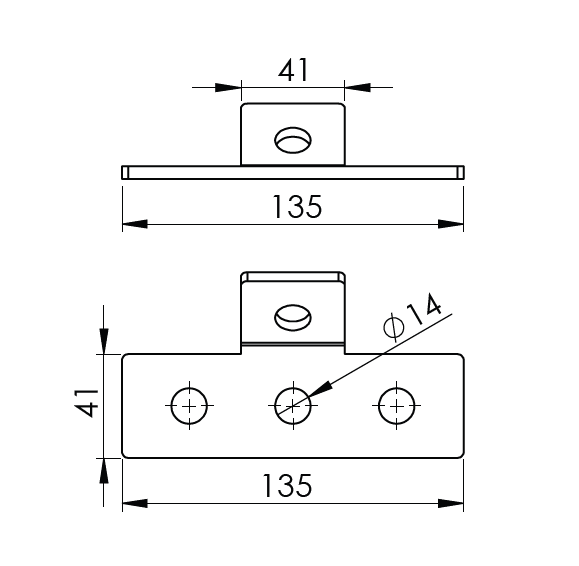

Designed for joining C-profiles at a 45° angle when forming diagonal struts, braces, and stays in structural steel frameworks. It combines a 135 mm flat base plate with 3 mounting holes for attachment to a horizontal profile and a 41 mm wide tab bent at a 45° angle for securing the inclined strut. The design provides rigid node triangulation and prevents frame deformation. Hot-dip galvanized (Hot Dip Galvanized) protective coating guarantees high corrosion resistance when operated in high humidity and aggressive environments.
Code:
ACB-12-45 HDG
Unit: Piece
Basic features
