    Double Bracket, 41х41mm, L:1000mm, T:2mm ( Electro Galvanized )

    Double Bracket, 41х41mm, L:1000mm, T:2mm ( Electro Galvanized )
    Double Bracket, 41х41mm, L:1000mm, T:2mm ( Electro Galvanized )
    Double Bracket, 41х41mm, L:1000mm, T:2mm ( Electro Galvanized )
    Double Bracket, 41х41mm, L:1000mm, T:2mm ( Electro Galvanized )
    Code:
    ACKD-41-41-100 EG
    Unit: Piece
    Basic features
    Width
    Height
    Coating

    Bracket ACKD-41-41 is designed for the installation of cable tray runs, suspension elements, and structures. Can be mounted to walls/ceilings, installed in profiles: AC-21, AC-41, or mounted on single and double hangers. Features double-sided mounting capability. Designed for trays with a width of 1000 mm. Has a zinc coating and is corrosion-resistant.

    Datasheet

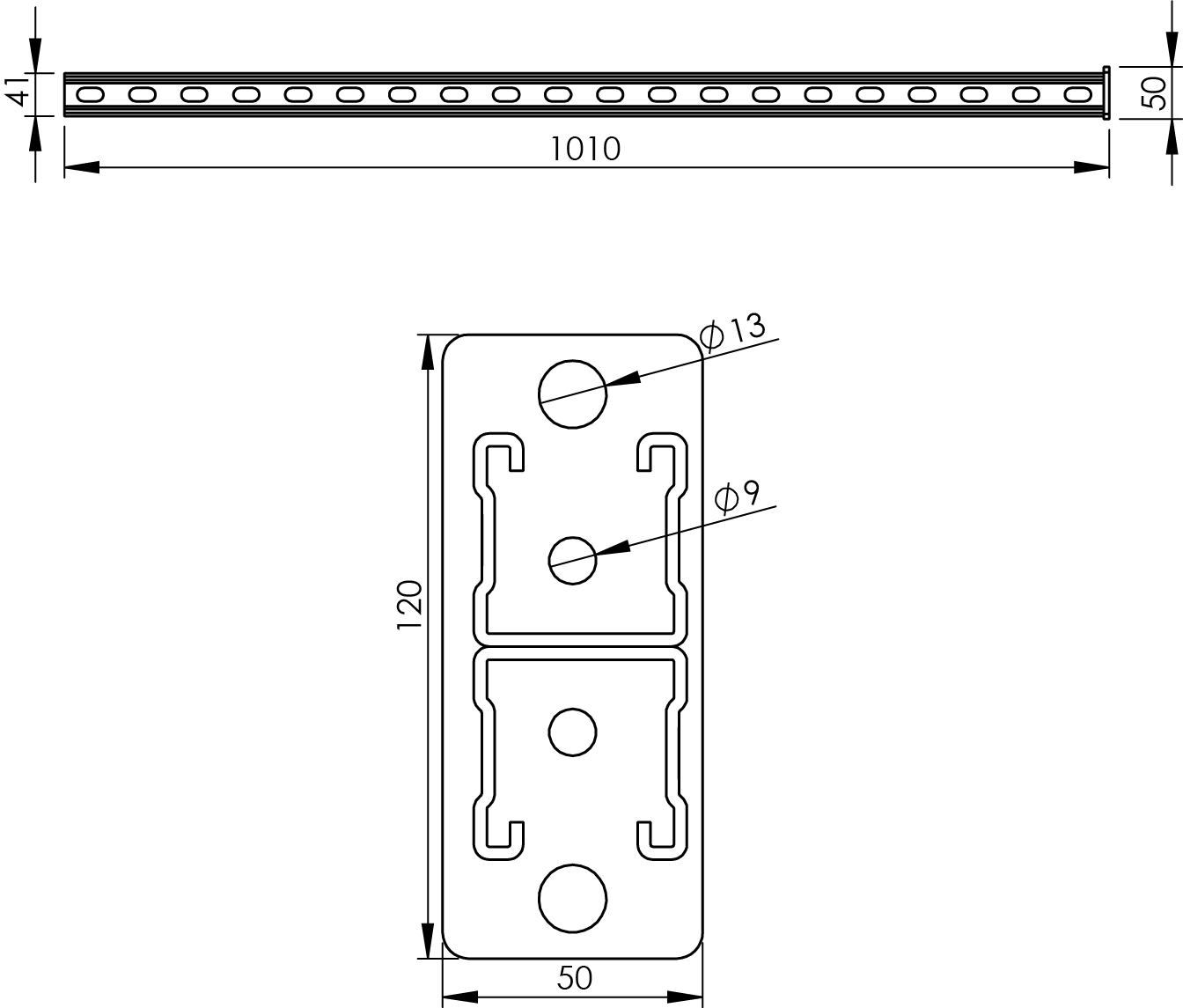

    Specifications:

    Steel thickness: 1.5 mm
    Color: Light gray
    Width, mm: 48
    Model/execution: Wall bracket
    Height, mm: 120
    Protective surface coating: Electro-galvanized
    Length, mm: 1010
    Material: Steel

    Download Now

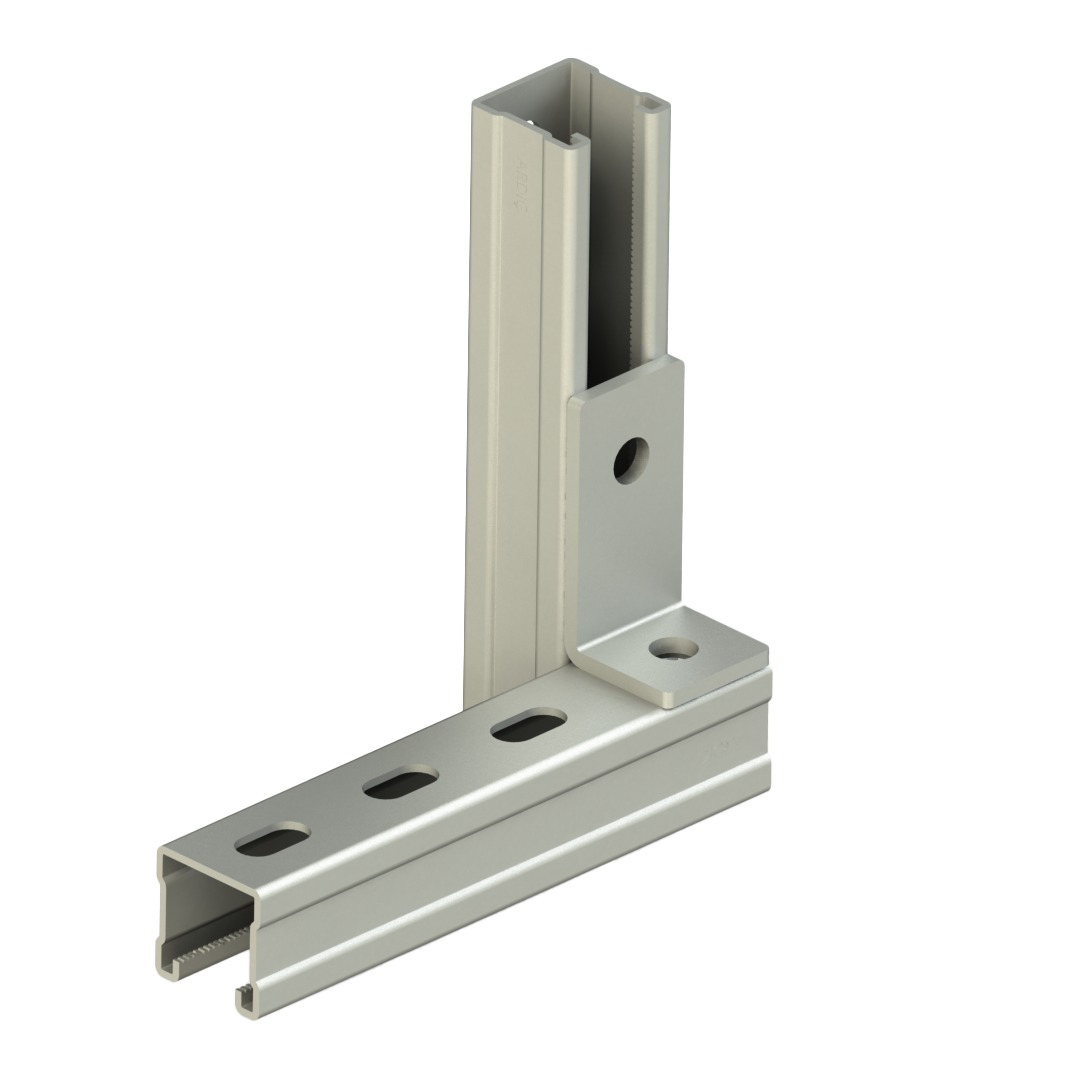

    ACB-402-C HDG
    ACB-402-C HDG
    90° 2-hole angle bracket for C-profile, T:5mm ( Hot Dip Galvanized )
    Unit: Piece

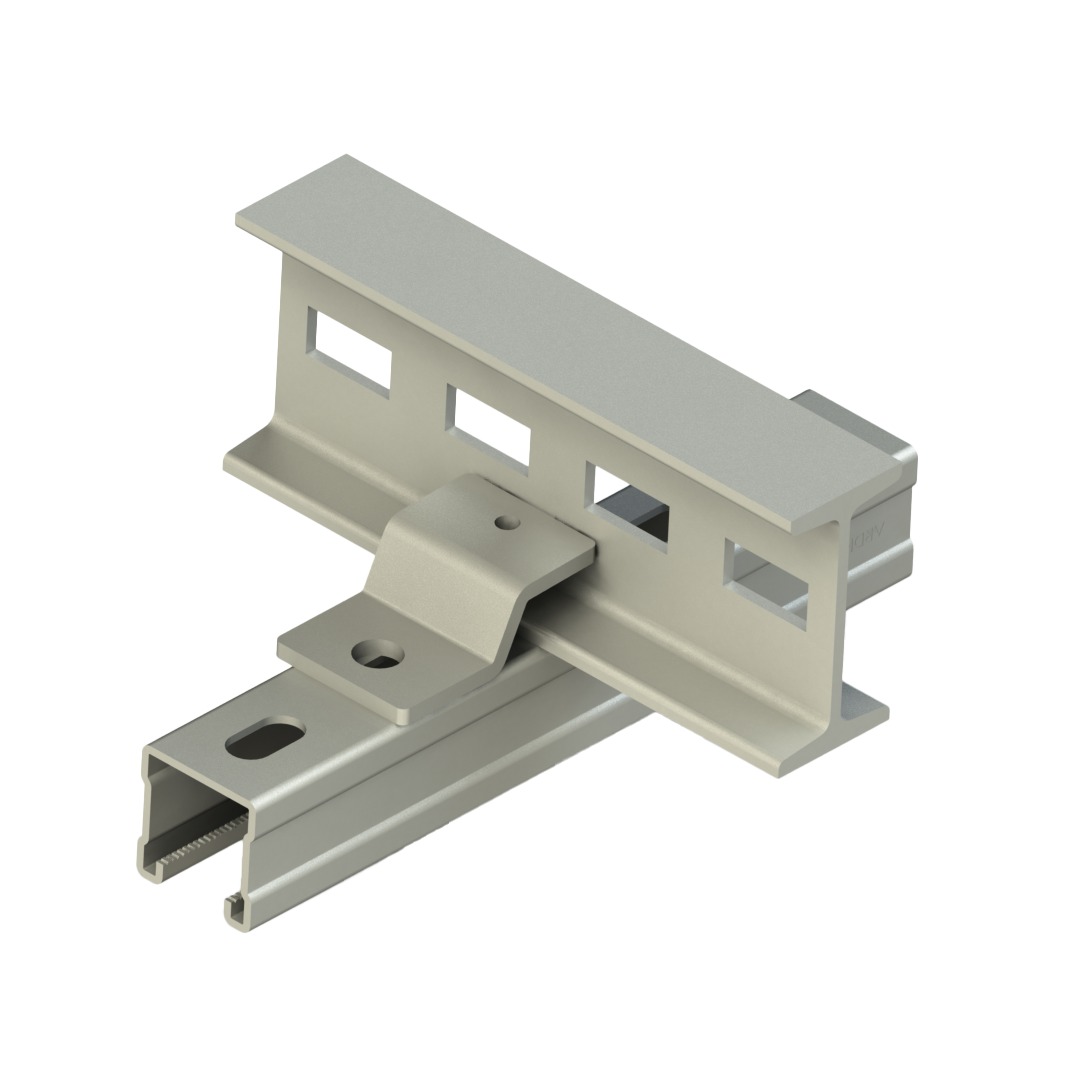

    ACB-924 HDG
    ACB-924 HDG
    Z-shaped C-profile beam bracket, T:5mm ( Hot Dip Galvanized )
    Unit: Piece

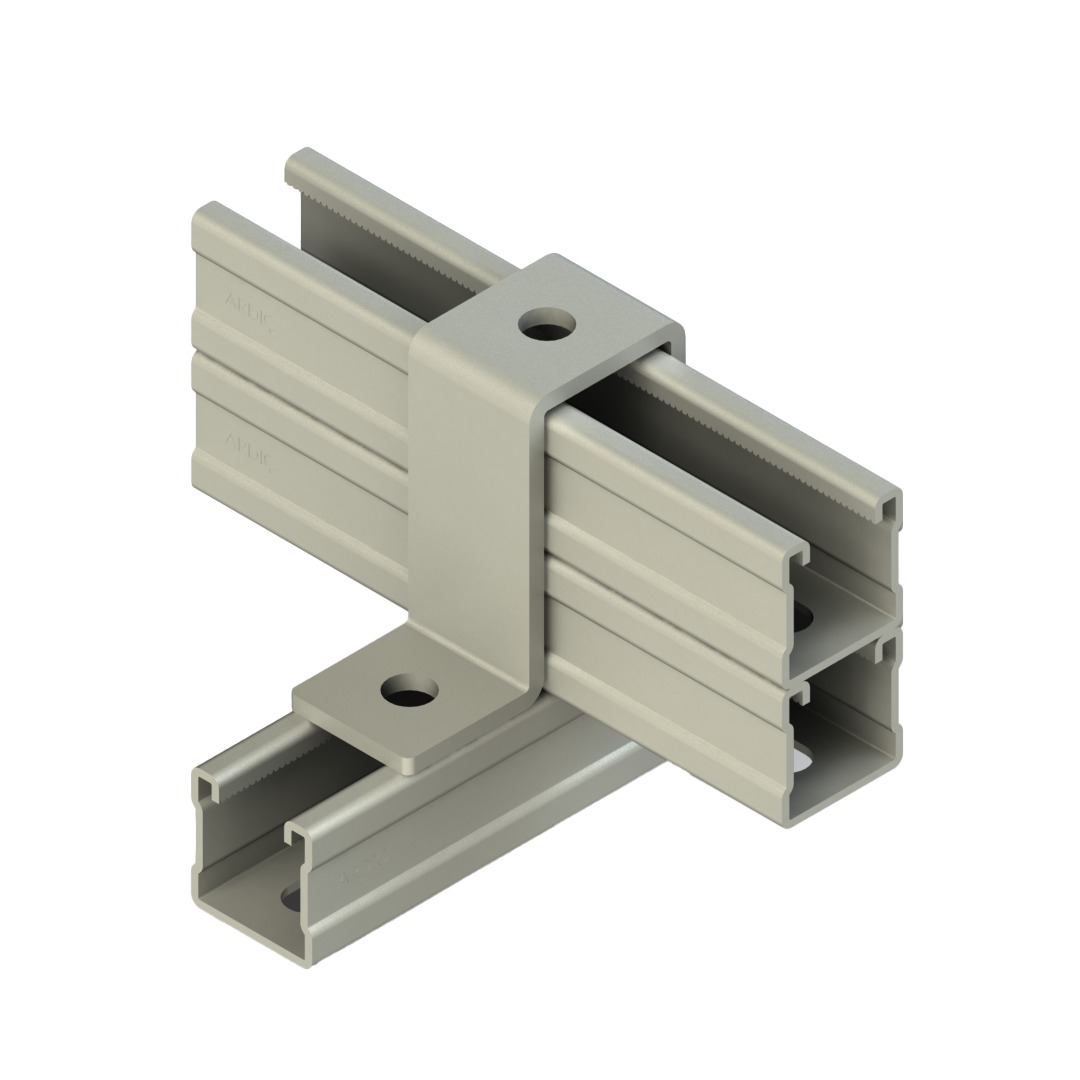

    ACB-28 HDG
    ACB-28 HDG
    U-shaped C-profile bracket (saddle), T:5mm ( Hot Dip Galvanized )
    Unit: Piece

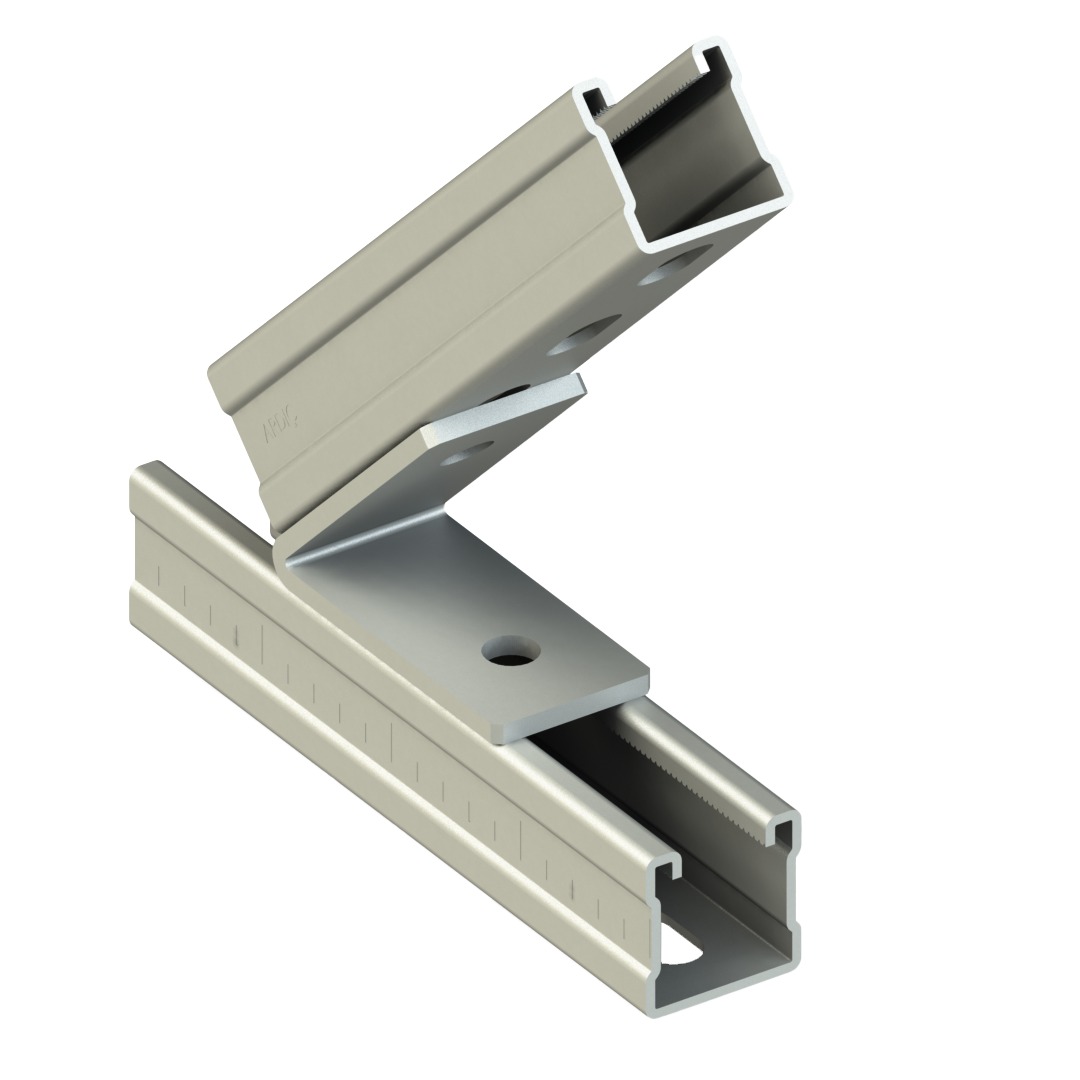

    ACB-26 HDG
    ACB-26 HDG
    Internal 45° angle C-profile connector, T:5mm ( Hot Dip Galvanized )
    Unit: Piece

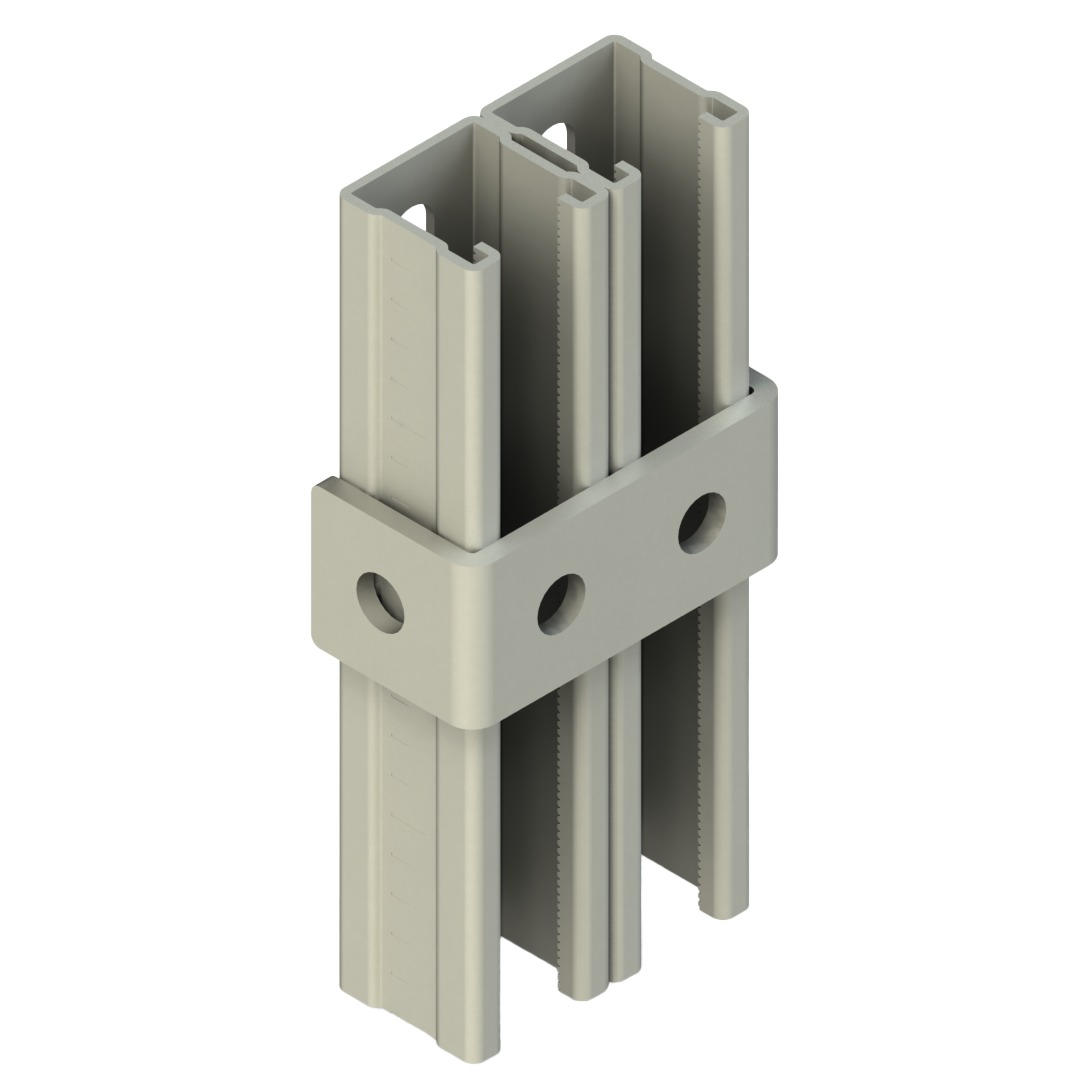

    ACB-915 HDG
    ACB-915 HDG
    U-bracket for double strut channel, T:5mm ( Hot Dip Galvanized )
    Unit: Piece

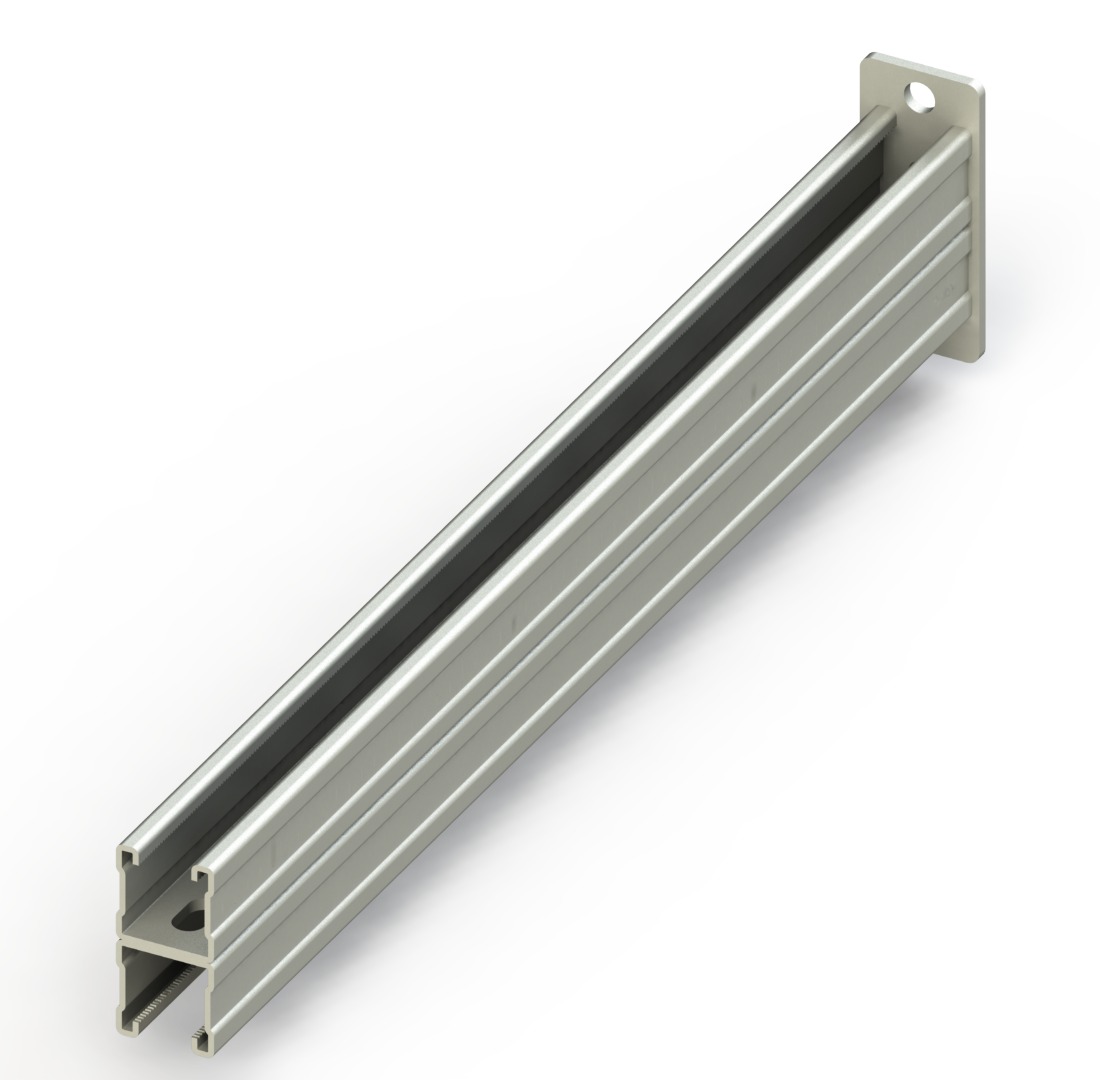

    ACKD-41-41-80 EG
    ACKD-41-41-80 EG
    Double Bracket, 41х41mm, L:800mm, T:2mm ( Electro Galvanized )
    Unit: Piece

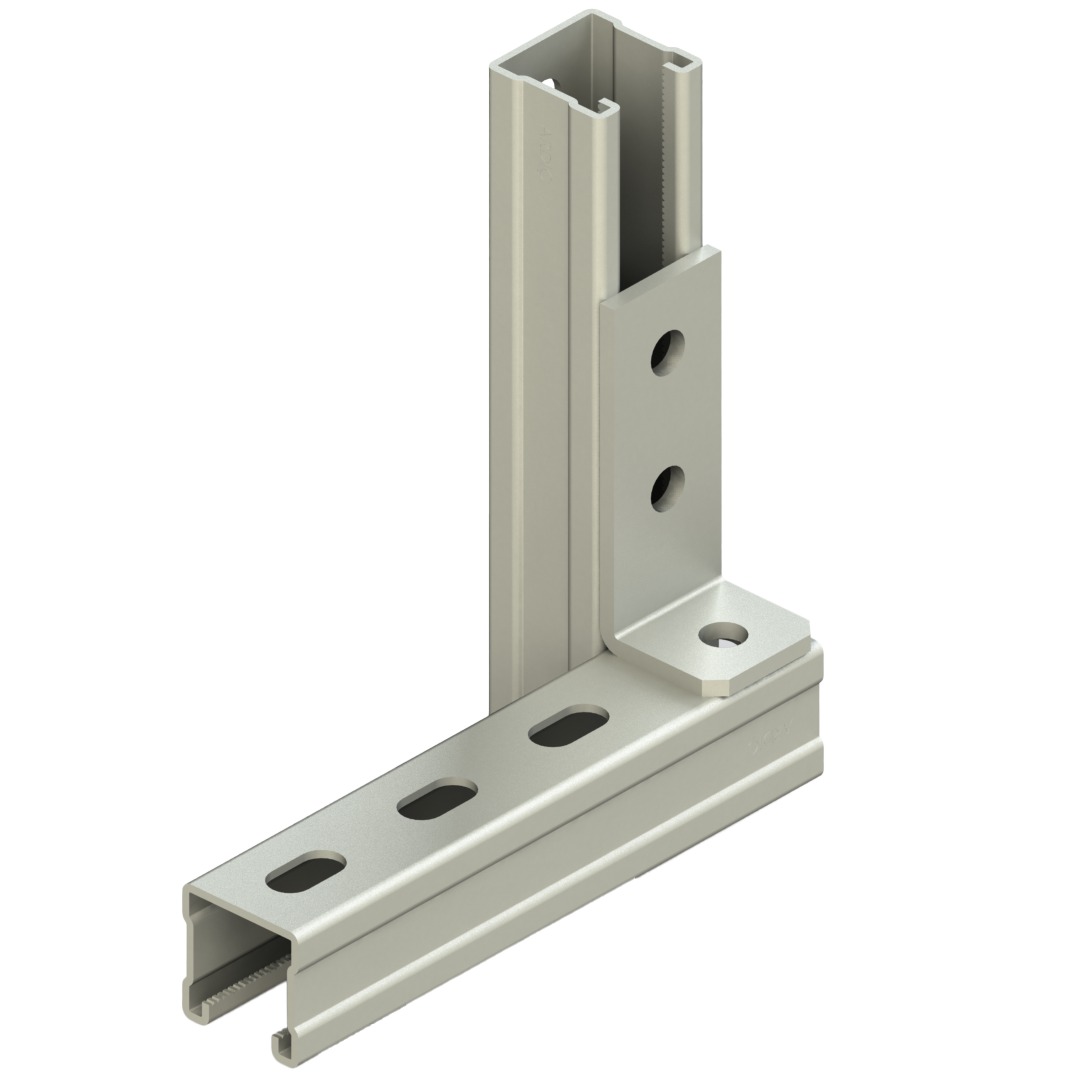

    ACB-407 HDG
    ACB-407 HDG
    Three-hole angle connector 90°, T:5mm ( Hot Dip Galvanized )
    Unit: Piece
