    Extended obtuse angle curved plate, T:5mm ( Hot Dip Galvanized )

    Extended obtuse angle curved plate, T:5mm ( Hot Dip Galvanized )
    Extended obtuse angle curved plate, T:5mm ( Hot Dip Galvanized )
    Extended obtuse angle curved plate, T:5mm ( Hot Dip Galvanized )
    Extended obtuse angle curved plate, T:5mm ( Hot Dip Galvanized )
    Code:
    ACB-304 HDG
    Unit: Piece
    Basic features

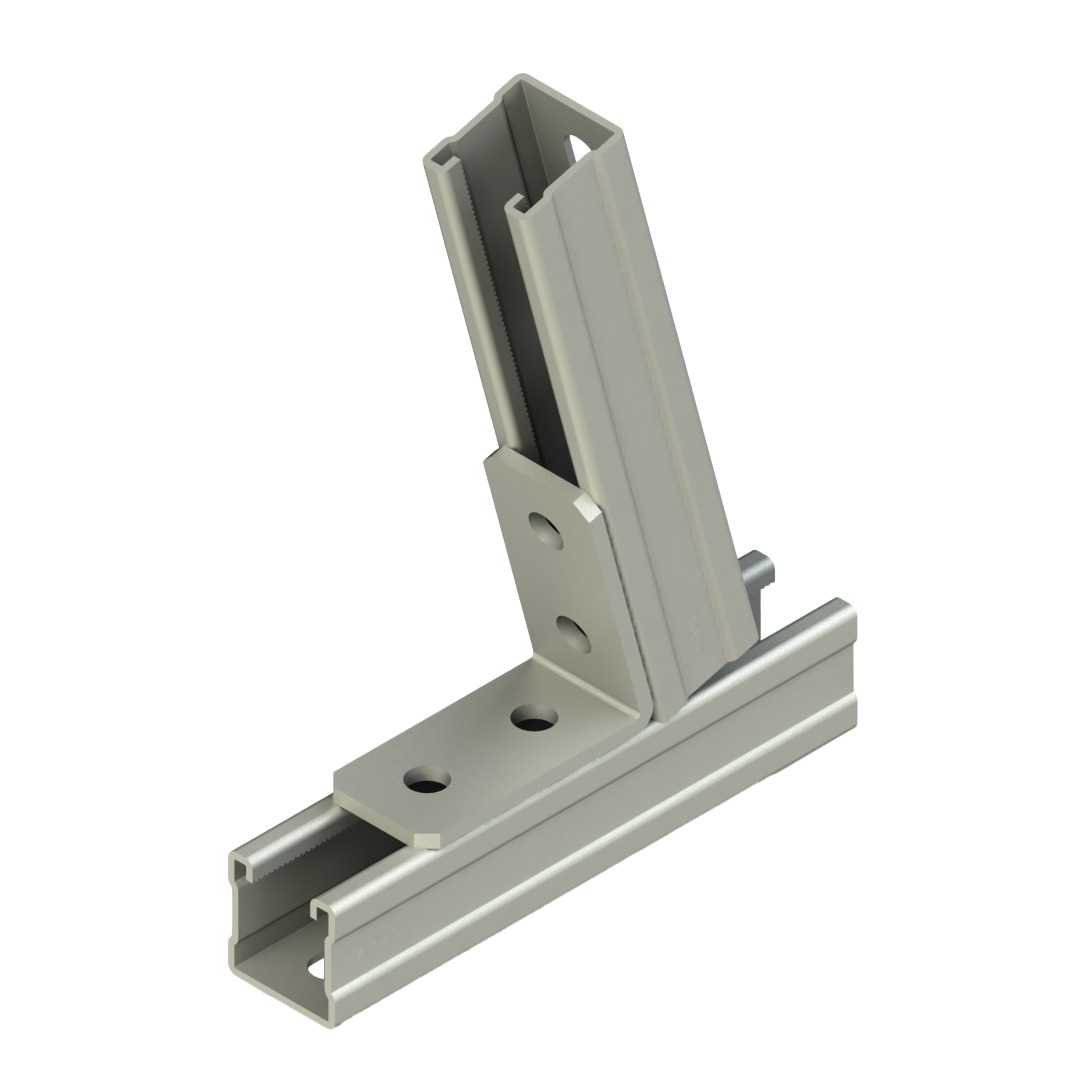

    Designed for joining C-profiles (strut channels) at an obtuse angle within suspension systems and supporting metal structures. The elongated curved plate with 4 mounting holes (2 on each side of the bend) provides reinforced fixation of inclined uprights, node resistance to pull-out forces, and stability under high bending loads. Hot-dip galvanized (Hot Dip Galvanized) protective coating guarantees high corrosion resistance when operated in high humidity and aggressive environments.

    Datasheet

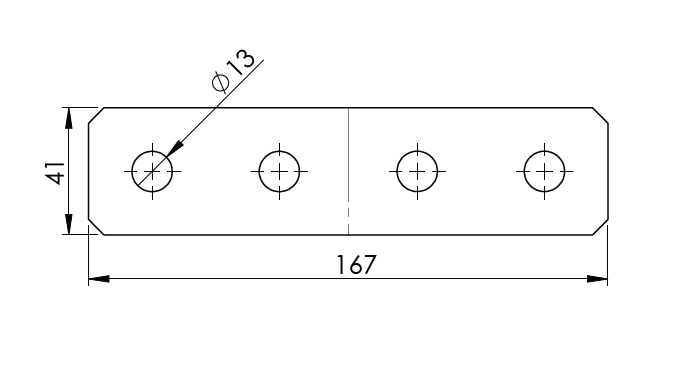

    Specifications:

    Steel thickness: 5.0 mm

    Length: 167 mm

    Width: 41 mm

    Hole diameter: 13 mm (4 holes)

    Protective coating: Hot-dip galvanizing (HDG)

    Weight: 0.300 kg / pc.
