    L-shaped (corner) plate, T:5mm ( Hot Dip Galvanized )

    L-shaped (corner) plate, T:5mm ( Hot Dip Galvanized )
    L-shaped (corner) plate, T:5mm ( Hot Dip Galvanized )
    L-shaped (corner) plate, T:5mm ( Hot Dip Galvanized )
    L-shaped (corner) plate, T:5mm ( Hot Dip Galvanized )
    Code:
    ACB-210 HDG
    Unit: Piece
    Basic features

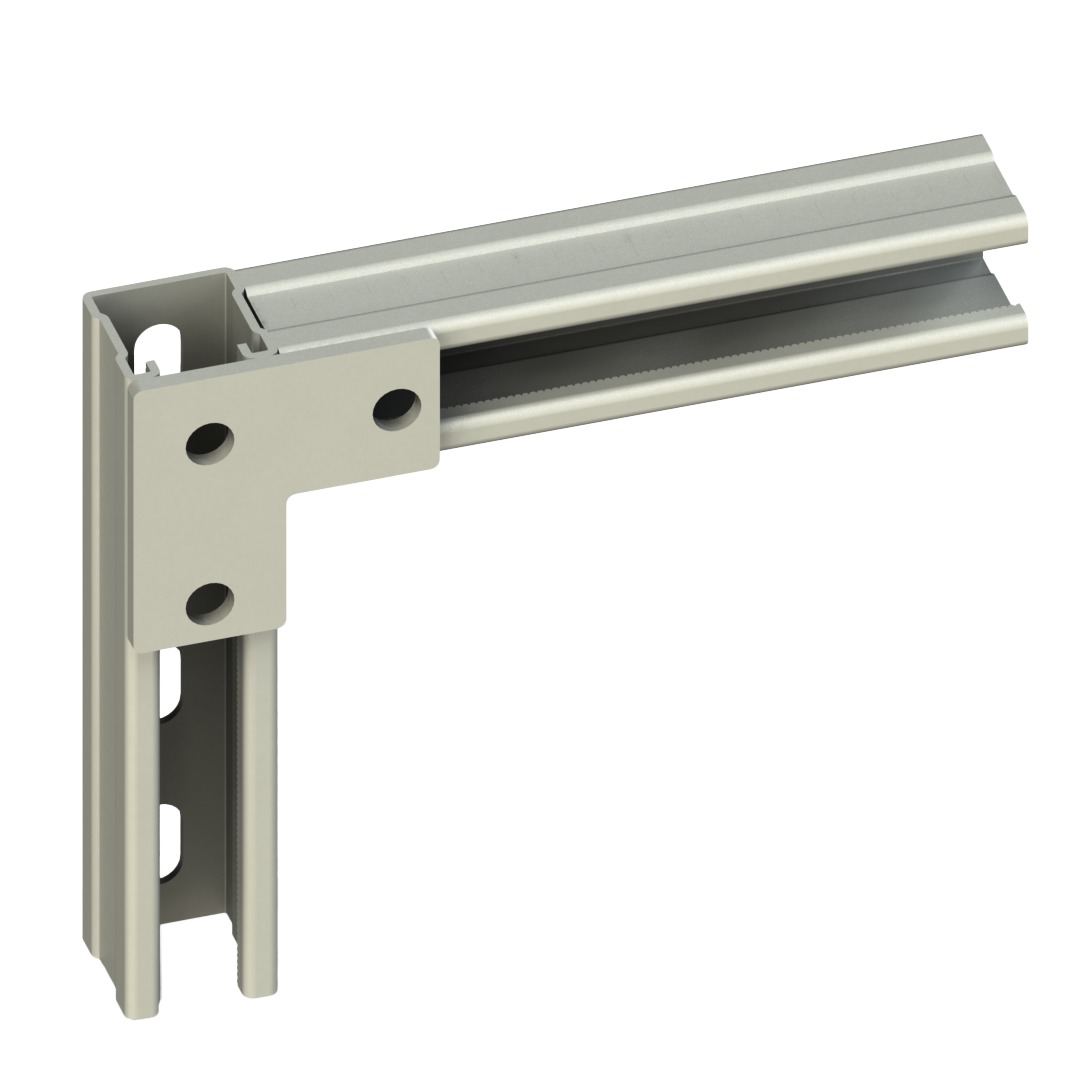

    Designed for flat 90° angle connection of C-profiles (strut channels) within suspension systems and supporting metal structures. Provides accurate geometric fixation of corner joints and rigidity of the mounting node during cable run installation. Hot-dip galvanized (Hot Dip Galvanized) protective coating guarantees high corrosion resistance when operated in high humidity and aggressive environments.

    Datasheet

    Specifications:

    Steel thickness: 5.0 mm

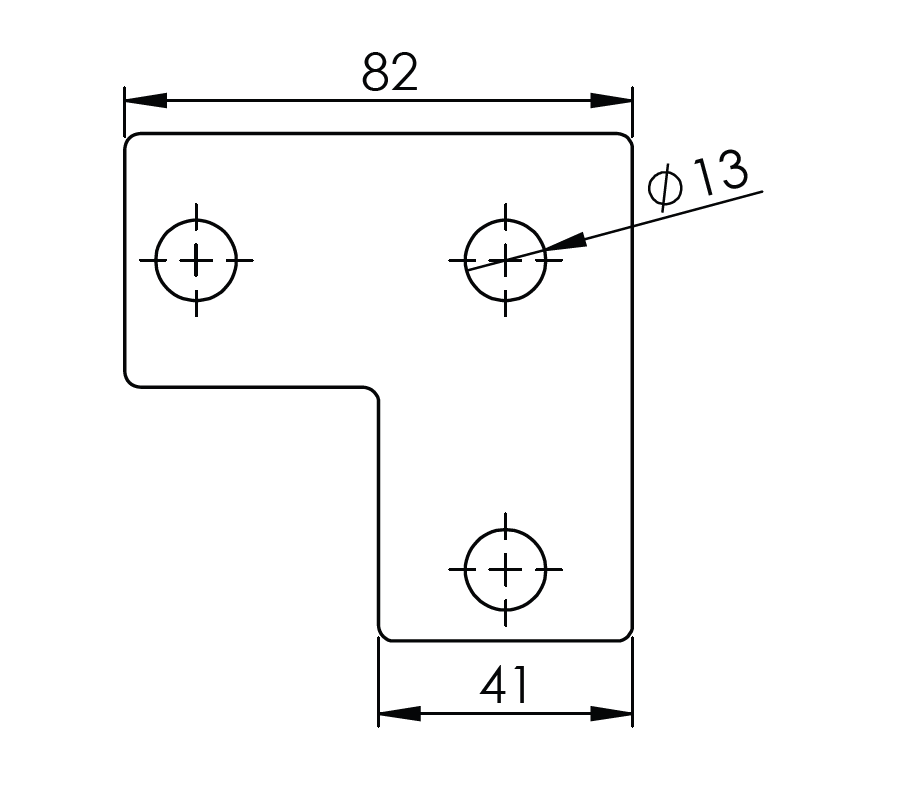

    Overall dimensions: 82 x 82 mm (flange width: 41 mm)

    Hole diameter: 13 mm (3 holes)

    Protective coating: Hot-dip galvanizing (HDG)

    Weight: 0.200 kg / pc.

    Download Now
