    U-shaped C-profile bracket (saddle), T:5mm ( Hot Dip Galvanized )

    U-shaped C-profile bracket (saddle), T:5mm ( Hot Dip Galvanized )
    U-shaped C-profile bracket (saddle), T:5mm ( Hot Dip Galvanized )
    U-shaped C-profile bracket (saddle), T:5mm ( Hot Dip Galvanized )
    U-shaped C-profile bracket (saddle), T:5mm ( Hot Dip Galvanized )
    Code:
    ACB-28 HDG
    Unit: Piece
    Basic features

    Designed for enclosing perpendicular (cross or T-joint) connection of C-profiles (strut channels), including double profiles, at a 90° angle. Provides reliable fixation, maximum rigidity of the mounting assembly, and high load resistance. Hot-dip galvanized (Hot Dip Galvanized) protective coating ensures high corrosion resistance when operated in high humidity and aggressive environments.

    Datasheet

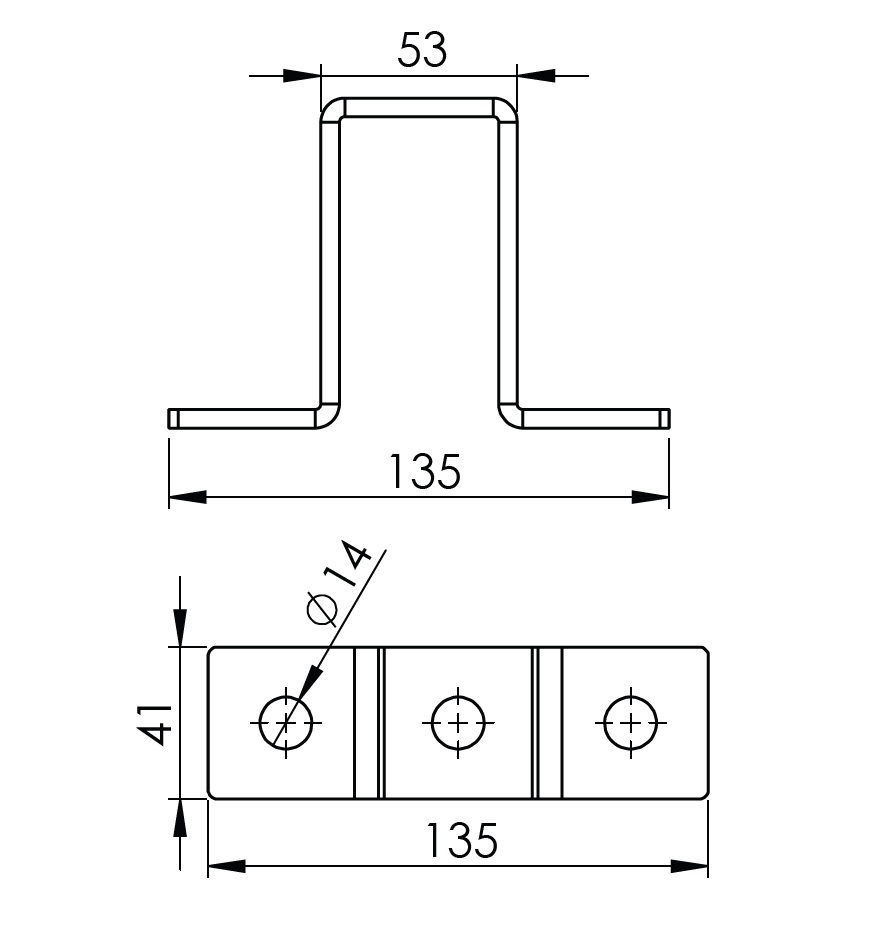

    Specifications:

    Steel thickness: 5.0 mm

    Overall dimensions (LxW): 135 x 41 mm

    Inner bracket width: 53 mm

    Hole diameter: 14 mm

    Protective coating: Hot-dip galvanizing (HDG)

    Weight: 0.540 kg / pc.
