U-support base connector for C profile, T:5mm ( Hot Dip Galvanized )

Code:

ACB-14 HDG

Unit: Piece

Basic features

Designed for perpendicular joining of C-profiles (strut profiles) in support frames and suspension systems. The unit combines an extended base plate (126 mm) with 3 mounting holes for surface attachment to a horizontal beam and a U-shaped socket (48 mm high) that encloses the end of the vertical post. The design ensures precise alignment and stability of the perpendicular node. Hot-dip galvanized (Hot Dip Galvanized) protective coating guarantees high corrosion resistance when operated in high humidity and aggressive environments.

Specifications:

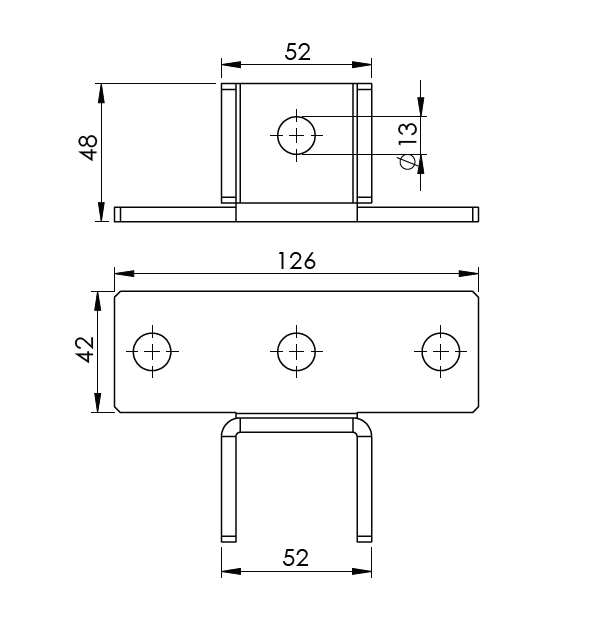

Steel thickness: 5.0 mm

Base length: 126 mm

Base width: 42 mm

U-socket height: 48 mm

U-socket width: 52 mm

Hole diameter: 13 mm (3 holes on the base + 1 hole on the socket)

Protective coating: Hot-dip galvanizing (HDG)

Weight: 0.440 kg / pc.
