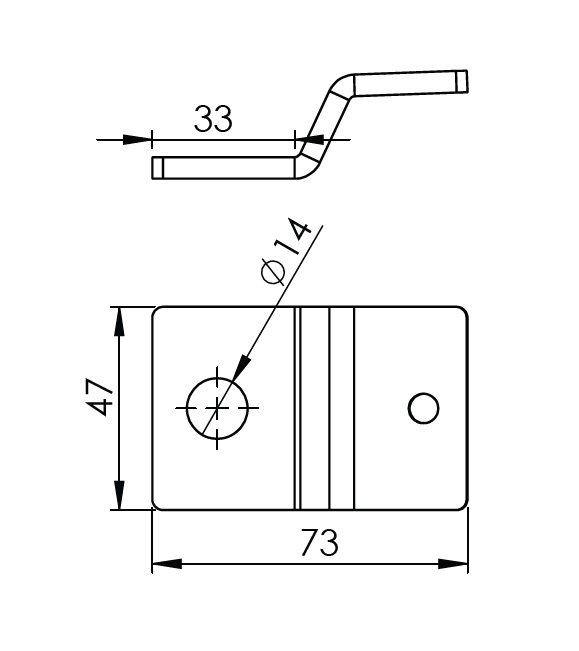

Designed for perpendicular clamping and securing of C-profiles to the flanges of I-beams and other structural steelwork. The Z-shaped body bridges over the edge of the beam flange to press the profile against the load-bearing support. It features a Ø14 mm mounting hole for a fixing bolt on the 33 mm support foot and a small positioning hole on the top clamping section. Mounting is achieved without welding or drilling into the beam. Hot-dip galvanized (Hot Dip Galvanized) protective coating guarantees high corrosion resistance when operated in high humidity and aggressive environments.
Code:
ACB-924 HDG
Unit: Piece
Basic features
