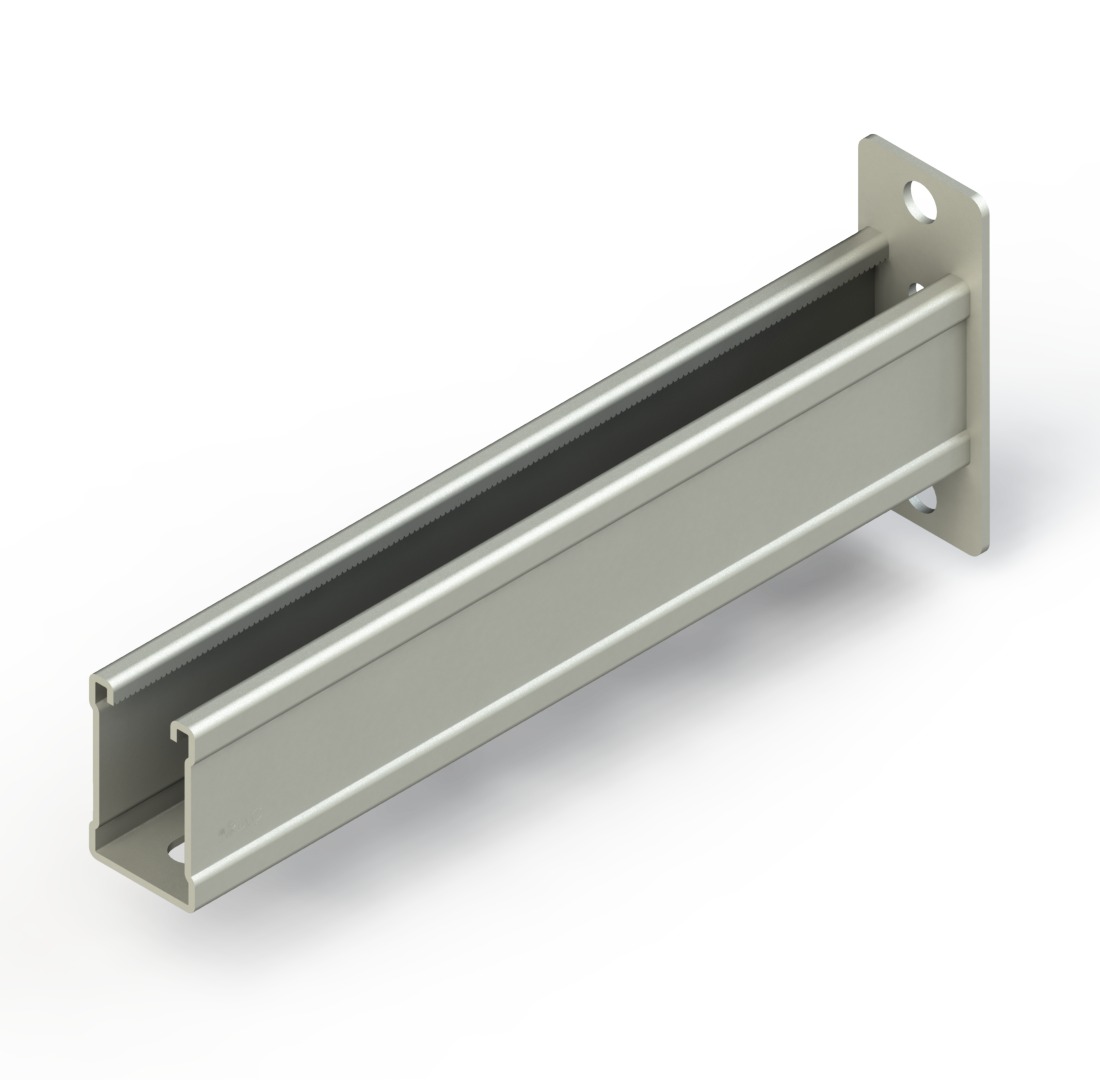

    C Support Bracket, 41х62mm, L:300mm, T:2mm ( Electro Galvanized )

    C Support Bracket, 41х62mm, L:300mm, T:2mm ( Electro Galvanized )
    C Support Bracket, 41х62mm, L:300mm, T:2mm ( Electro Galvanized )
    C Support Bracket, 41х62mm, L:300mm, T:2mm ( Electro Galvanized )
    C Support Bracket, 41х62mm, L:300mm, T:2mm ( Electro Galvanized )
    Code:
    ACK-41-62-30 EG
    Unit: Piece
    Basic features
    Width
    Height
    Coating

    Bracket ACK-41-62 is designed for the installation of cable tray runs, suspension elements, and structures. Can be mounted to walls/ceilings, installed in profiles: AC-21, AC-41, AC-62, or mounted on single and double hangers. Designed for trays with a width of 300 mm. Has a zinc coating and is corrosion-resistant.

    Datasheet

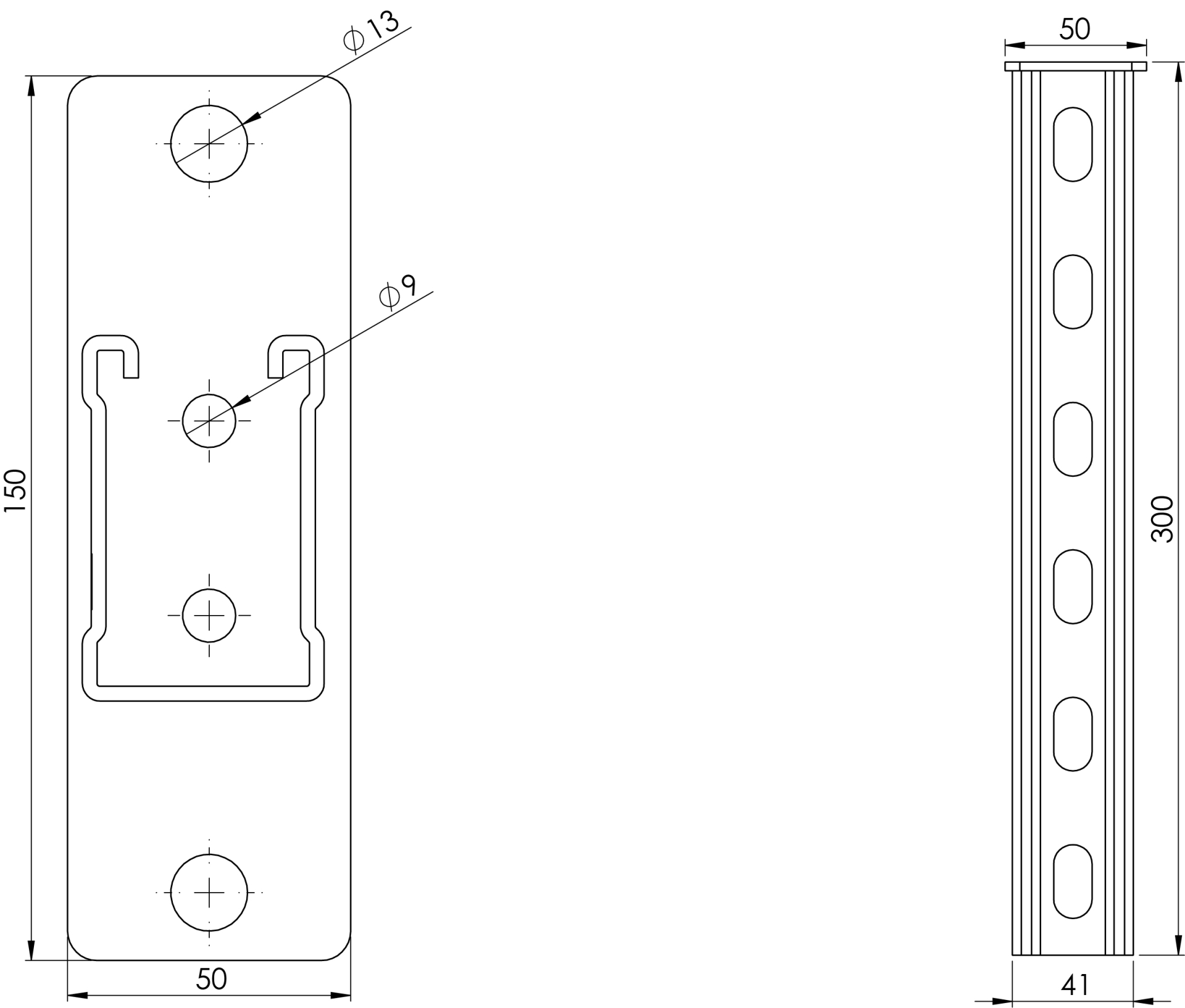

    Specifications:

    Steel thickness: 2 mm
    Color: Light gray
    Width, mm: 50
    Model/execution: Wall bracket
    Height, mm: 150
    Protective surface coating: Electro-galvanized
    Length, mm: 310
    Material: Steel

    Download Now
    740-4A PG
    740-4A PG
    Inside Vertical Bend 90˚ (Fixed Type)W: 400 mm · H: 40 mm · T: 1,2 mm · Pre Galvanized
    Unit: Piece
    ACB-14 HDG
    ACB-14 HDG
    U-support base connector for C profile, T:5mm ( Hot Dip Galvanized )
    Unit: Piece
    710-4A HDG
    710-4A HDG
    Inside Vertical Bend 90˚ (Fixed Type)W: 100 mm · H: 40 mm · T: 1,2 mm · Hot Dip Galvanized
    Unit: Piece
    ACK-41-62-40 EG
    ACK-41-62-40 EG
    C Support Bracket, 41х62mm, L:400mm, T:2mm ( Electro Galvanized )
    Unit: Piece
    760-4A PG
    760-4A PG
    Inside Vertical Bend 90˚ (Fixed Type)W: 600 mm · H: 40 mm · T: 1,2 mm · Pre Galvanized
    Unit: Piece
    505-4A PG
    505-4A PG
    Inside / Outside Vertical Bend (Adjustable )W: 50 mm · H: 40 mm · T: 0,8 mm · Pre Galvanized
    Unit: Piece
    810-4A PG
    810-4A PG
    Outside Vertical Bend 90˚ (Fixed Type)W: 100 mm · H: 40 mm · T: 1,2 mm · Pre Galvanized
    Unit: Piece
