Ardıç U Profile Systems are galvanized steel mounting channels and supporting components designed for cable trays, cable ladders and industrial installations. The product range includes 50x35 mm perforated U channels, welded ceiling supports, connection plates, mounting brackets and reinforced UPK profile systems.
Ardıç A3 and UPK products offer different steel thicknesses, mounting lengths and connection configurations for wall-mounted, ceiling-suspended and modular cable support assemblies.
What Is a U Profile and Where Is It Used?
A U profile is an open U-shaped steel section used as a structural mounting element in suitable supporting assemblies.
Ardıç U profiles and supporting components can be used for:
- Cable tray and cable ladder support assemblies
- Ceiling suspension systems
- Wall-mounted supporting structures
- Industrial electrical installation supports
- Modular mounting and connection assemblies
- Selected mechanical services installations where technically suitable
The structural suitability of a U profile depends on its section geometry, steel thickness, connection method, support spacing and the complete installation design.
A3 Perforated U Profile — 50x35 mm
The Ardıç A3 series includes perforated galvanized U channels with a 50x35 mm cross-section.
Standard 3000 mm A3 profiles are available in different steel thicknesses and galvanized finishes for engineered cable support arrangements.
- Cross-section: 50x35 mm
- Steel thicknesses: 1.5 / 2.0 / 2.5 mm
- Standard length: 3000 mm
- Construction: Perforated steel U channel
- Finishes: Pre-Galvanized (PG) and Hot-Dip Galvanized (HDG)
- Product family: A3
For example, A3-100-20 HDG identifies a 50x35 mm U profile, 3000 mm long, manufactured from 2.0 mm steel with a hot-dip galvanized finish.
Compatible brackets, threaded rods, connection plates and fixing components must be selected according to the intended support arrangement.

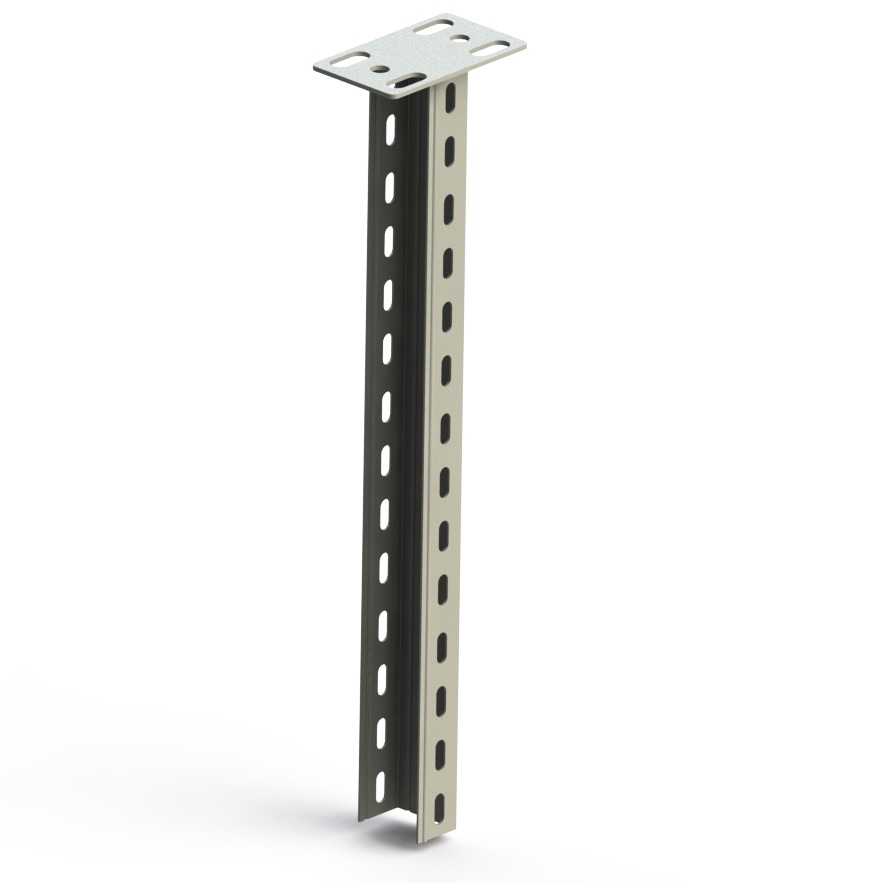

A3-1 Welded Ceiling Mounting Brackets and Hangers
The Ardıç A3-1 product family includes welded steel mounting components designed for suitable ceiling suspension arrangements.
The published range contains lengths from 200 to 3000 mm, with steel thicknesses of 1.5 mm and 2.0 mm.
Electro-Galvanized (EG) and Hot-Dip Galvanized (HDG) variants are listed.
Additional A3-1-10 single and A3-1-10D double welded ceiling connection components are available for different supporting assemblies.
Hanger length, connection geometry, anchor performance and the total supported load must be considered during engineering selection.
U Profile Connectors and Ceiling Fixing Components
U profile supporting assemblies may require connection plates, suspension components and reinforced ceiling mounting bases.
The Ardıç range includes:
- A3-1-A: U profile connecting plate, 60 mm long and 2 mm thick.
- A3-1-A1: U profile connector, 110 mm long and 2 mm thick.
- A3-2-2B family: Alternative U-shaped suspension supports.
- A3-2-10: Reinforced ceiling mounting base.
Selected components are available in PG and HDG finishes according to their product codes.
For compatible bolts, nuts, washers and other fixing components, explore Ardıç Hardware and Fastener Accessories.
A3-3 Standard and Heavy-Duty Support Brackets
Ardıç A3-3 support brackets include different constructions for various industrial mounting arrangements.
The A3-3-L range includes lightweight bracket designs in published lengths from 100 to 600 mm, with steel thicknesses varying by product.
A3-3 heavy-duty brackets are also listed in 100–600 mm lengths, with 1.5 mm and 2.0 mm steel options depending on the configuration.
Bracket selection must consider the supported cable load, bracket projection, fixing details and the complete installation assembly.
Product descriptions such as lightweight or heavy-duty should not be treated as universal load ratings.
Reinforced UPK U Profile Support Systems
The Ardıç UPK series includes galvanized steel support profiles and compatible mounting components manufactured from 3.0 mm steel.
The published UPK profile range includes lengths from 300 to 3000 mm, with Hot-Dip Galvanized (HDG) finishes.
Complementary UPK components include:
- UPK-EK: U profile splice connector, 210 mm long.
- UPK-1-10: Single ceiling mounting base.
- UPK-1-10D: Double ceiling mounting base.
- UPKHA: Mounting brackets for UPK profiles.
- UPKHB: Transverse supporting brackets.
- UPKW: Additional support brackets in different lengths.
The correct UPK profile, bracket and connector combination must be verified using product-specific dimensions and technical drawings.
The 3.0 mm thickness applies to the identified UPK support products and does not describe the complete A3 range.
Pre-Galvanized, Electro-Galvanized and Hot-Dip Galvanized Finishes
Ardıç U profile products include different galvanized surface finishes according to the component.
- Pre-Galvanized (PG): Components manufactured from pre-galvanized steel.
- Electro-Galvanized (EG): Electrolytically zinc-coated components for suitable installation environments.
- Hot-Dip Galvanized (HDG): A zinc-coated finish that can be considered for applications requiring increased corrosion protection.
Not every product family is available in every finish. Material selection should consider humidity, outdoor exposure, chemical conditions and project specifications.
U Profiles vs C Profiles for Cable Support Systems
U and C profiles provide different mounting geometries for engineered cable support assemblies.
U profiles can be combined with compatible hanging components, brackets and connection plates to create different support arrangements.
C profiles offer alternative modular connections using channel nuts and compatible mounting accessories.
For comparison, explore Ardıç C Profile Systems and I Profile Support Systems.
The most suitable profile depends on the required geometry, load conditions, fixing method and available installation space.
How to Select the Right U Profile Support System
Engineers should consider the complete supporting assembly when selecting U profiles and mounting accessories.
- Total cable load and support system self-weight
- U profile section dimensions and steel thickness
- Bracket and hanger lengths
- Support spacing and load distribution
- Connection plates, bolts and anchor compatibility
- Mechanical properties of the mounting surface
- Environmental exposure and suitable galvanized finish
Load capacity cannot be determined from steel thickness alone. The profiles, brackets, connectors, anchors and supporting structure must be evaluated together.
For additional engineering guidance, read the Cable Tray Support Systems Selection Guide.
U Profile Manufacturer in Turkey — Ardıç Elektrik
Ardıç Elektrik manufactures galvanized U profiles, mounting brackets, suspension components and supporting accessories for cable management systems in Turkey.
These components can be incorporated into suitable support assemblies for Cable Tray Systems and Cable Ladder Systems.
Review product specifications and available configurations in the Ardıç Technical Catalogues.
For project-specific U profile selection, mounting details or quotations, contact Ardıç Elektrik with your technical drawings and bill of materials.
Frequently Asked Questions
What U profile dimensions does Ardıç manufacture?
The A3 perforated U profile range includes 50x35 mm sections, 3000 mm standard lengths and 1.5, 2.0 and 2.5 mm steel thicknesses.
What are U profiles used for?
U profiles are used as supporting and mounting components for cable trays, cable ladders and other suitable industrial installation assemblies.
What is the difference between A3 and UPK profiles?
A3 includes 50x35 mm perforated U channels. UPK includes 3.0 mm steel support profiles with dedicated connectors, ceiling bases and mounting brackets.
Which galvanized finishes are available?
A3 profiles are listed with PG and HDG finishes. Other components may feature EG or HDG depending on the product code.
Do U profile systems require separate connectors?
Depending on the installation, compatible connection plates, brackets, hangers and fixing components are required to complete the support assembly.
How is U profile load capacity determined?
Load capacity depends on the section geometry, steel thickness, support span, connection components, anchors and applicable engineering calculations.
